Description

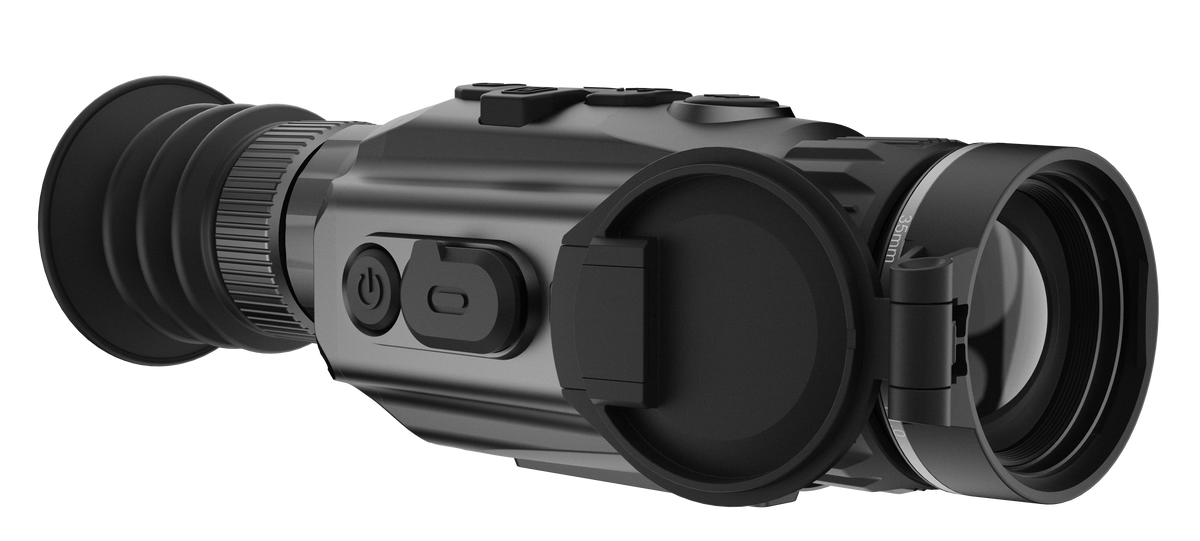

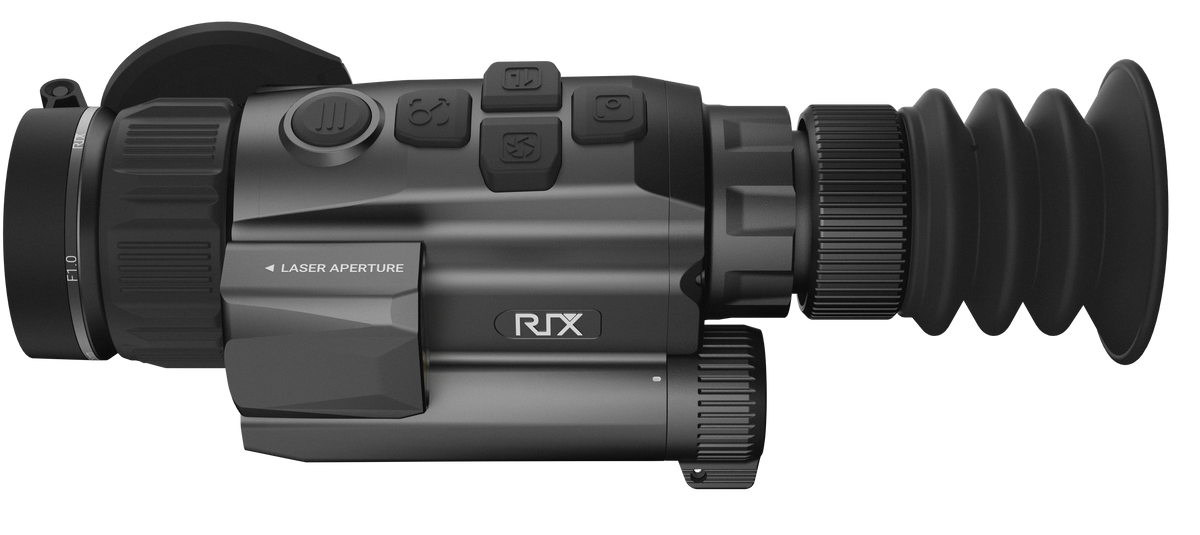

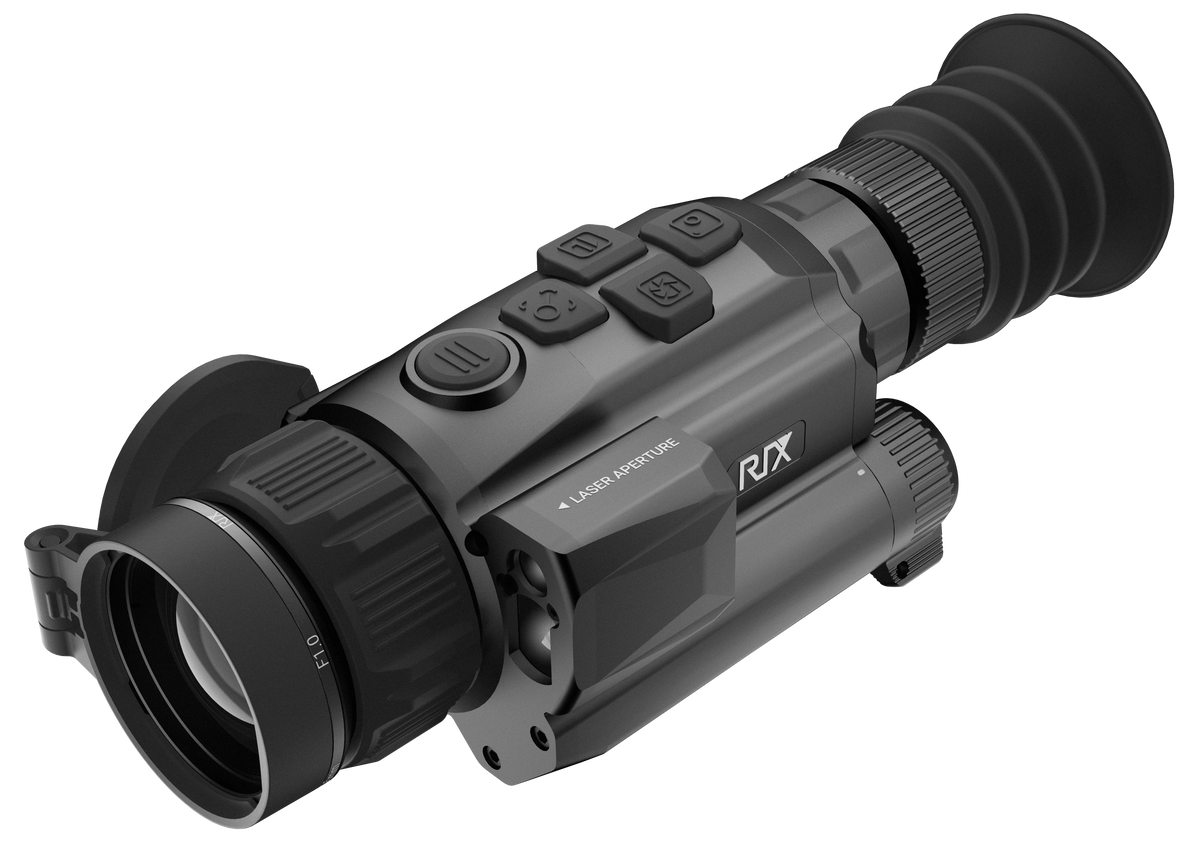

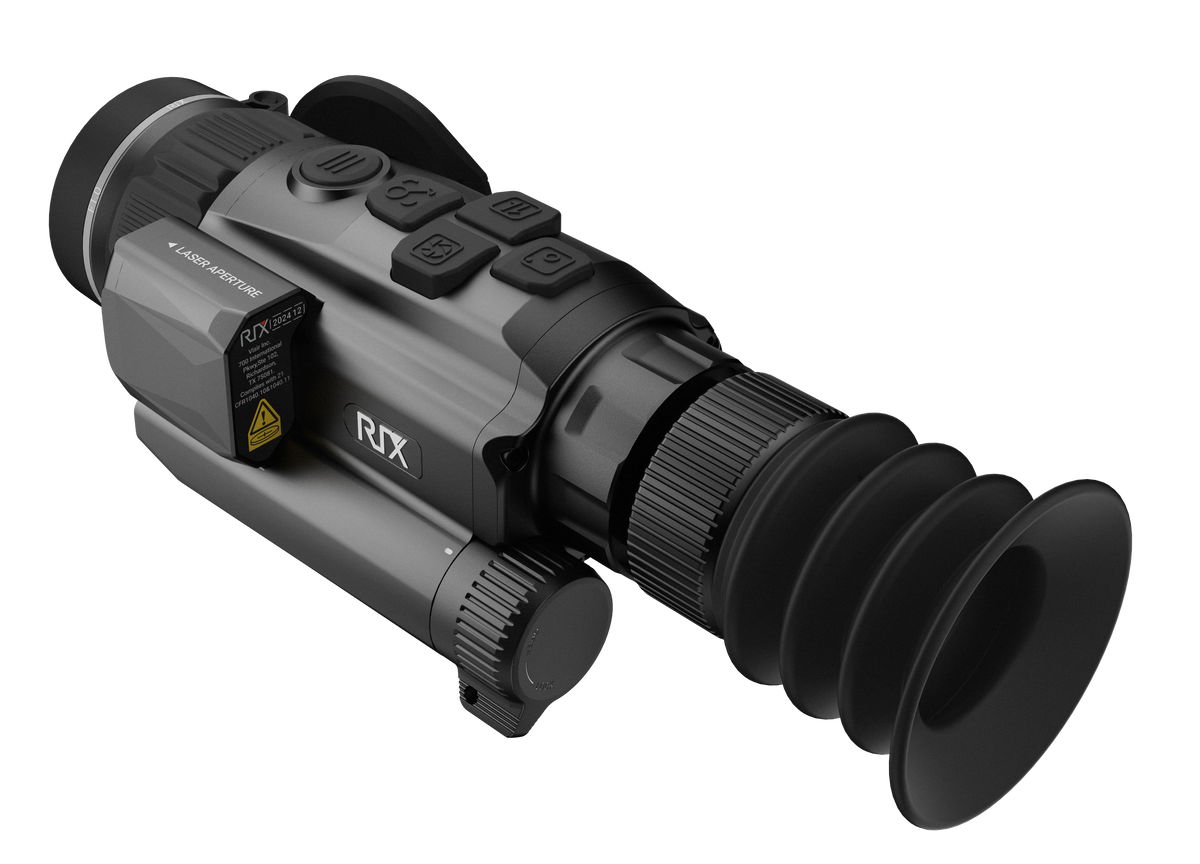

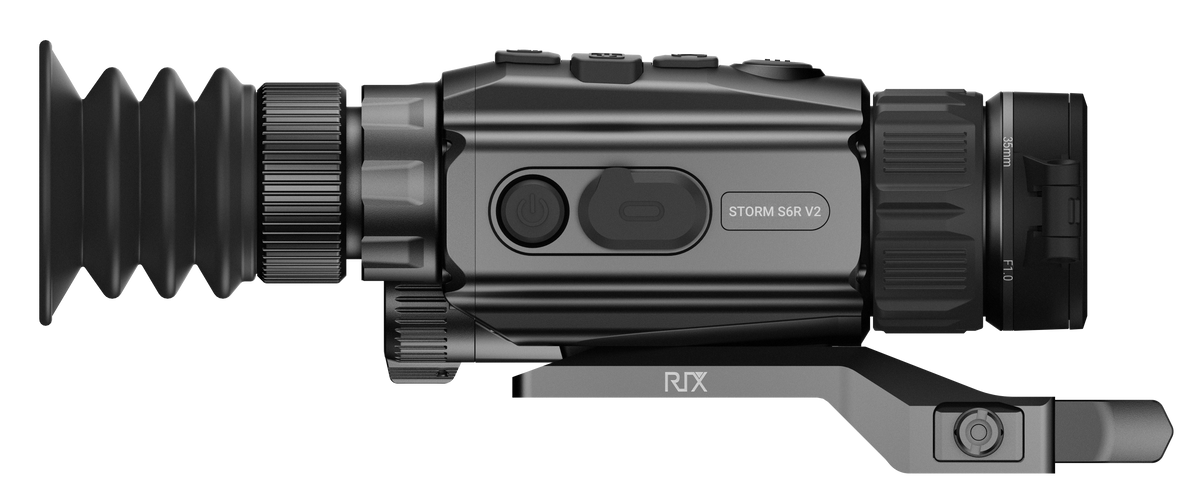

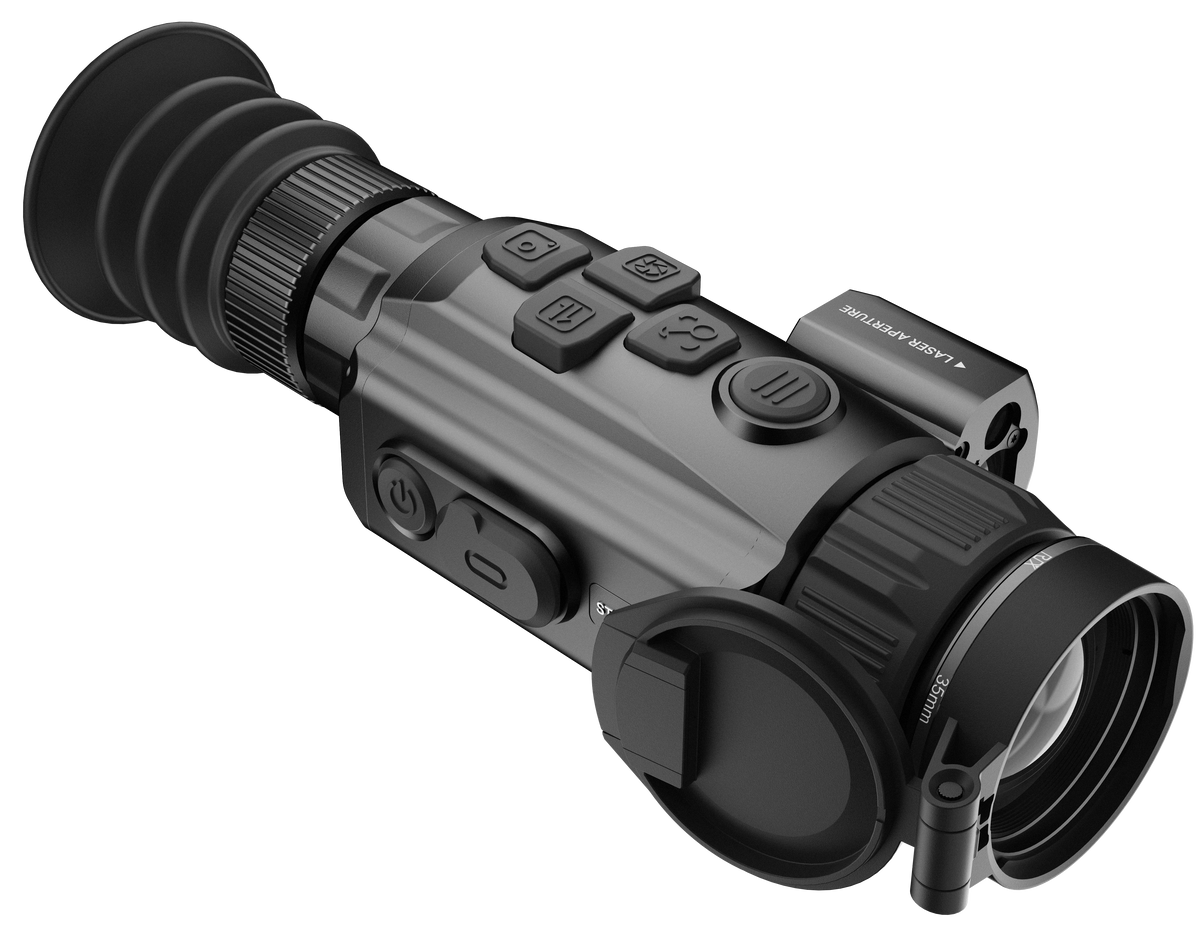

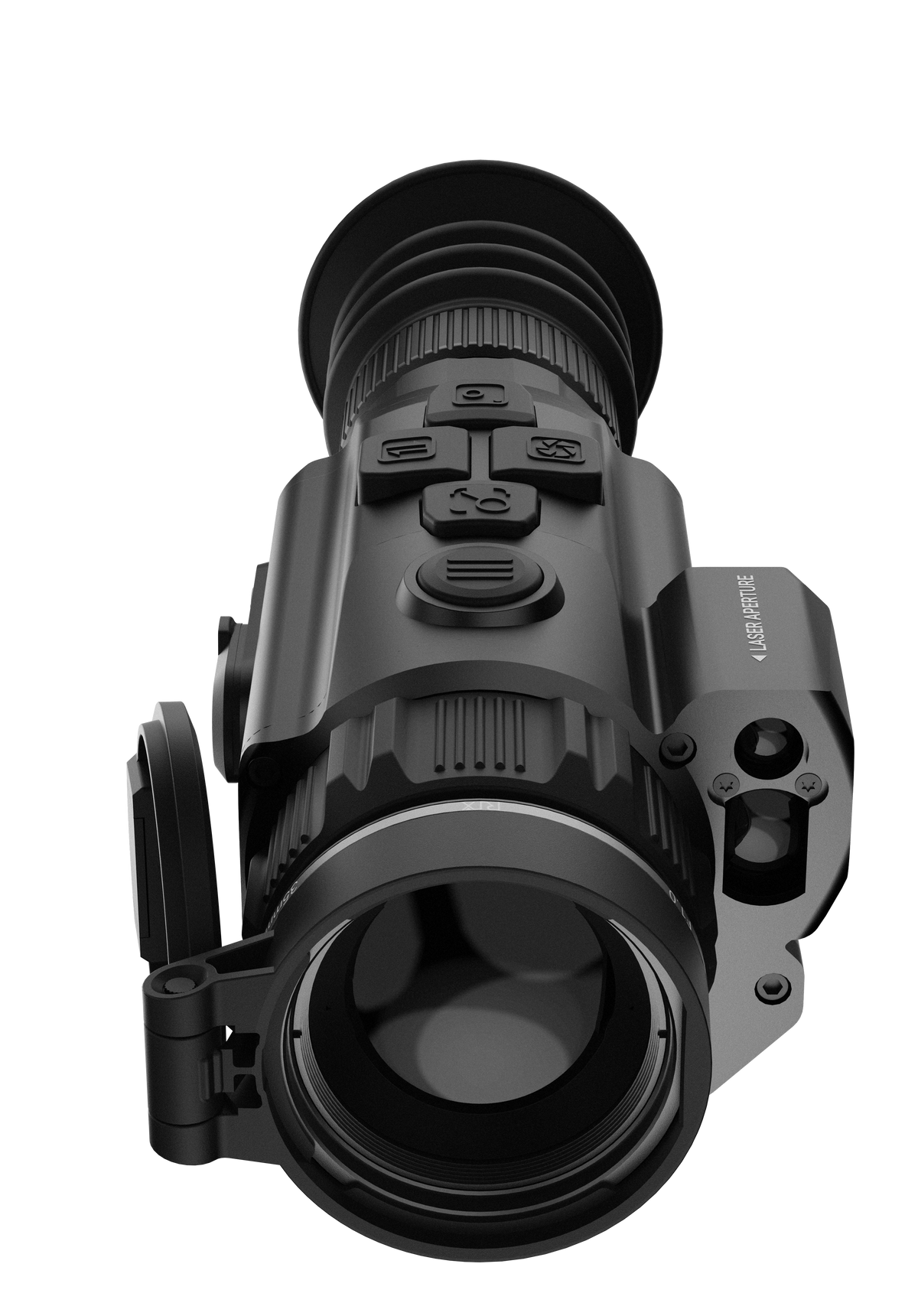

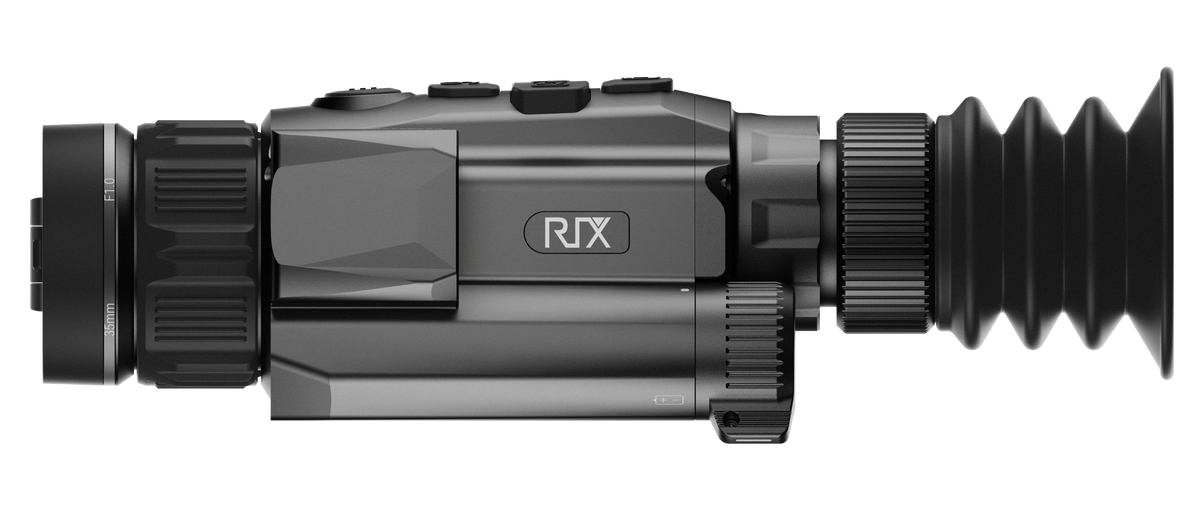

Model STORM S6R V2
Sensor Specifications
Type: VOx Uncooled Focal Plane Arrays
Resolution, pixels: 640×512
Pixel pitch: 12μm
NETD: <15 mK
Frame rate: 50 Hz
Optics
Objective lens: 35mm, F1.0
Base magnification: 2.5x
Digital Zoom, x 1 to 4x
Field of View (H×V),degrees/yd@100yd: 12.5°×7.7°/21.9×13.5
Eye relief: 52mm
Diopter adjustment: -5D to +5D
Detection range, m/yd: 1800/1969
Display Specifications
Type AMOLED
Resolution, pixels 1920×1080, 0.49 inch
Laser Rangefinder
Max. Measuring Range, m/yd: 2000/2187
Measurement Accuracy, m/yd: ±1/1.09
