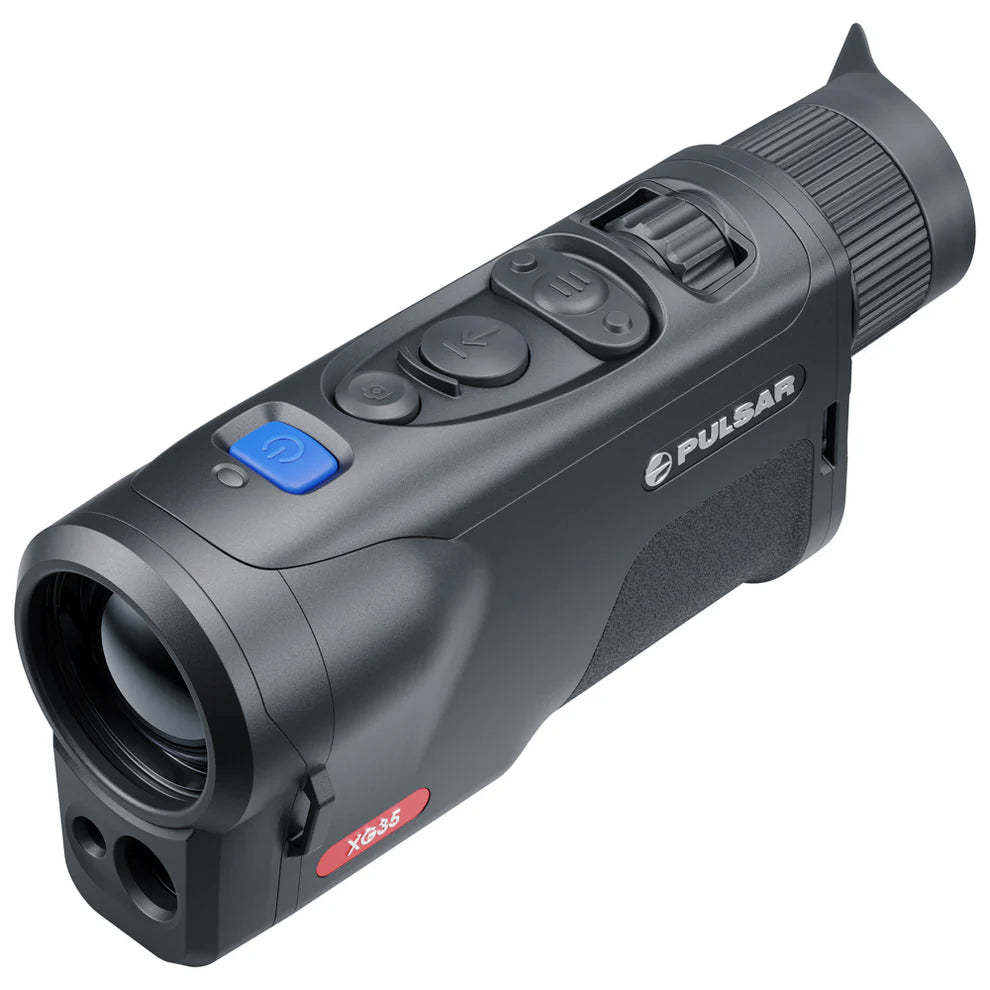

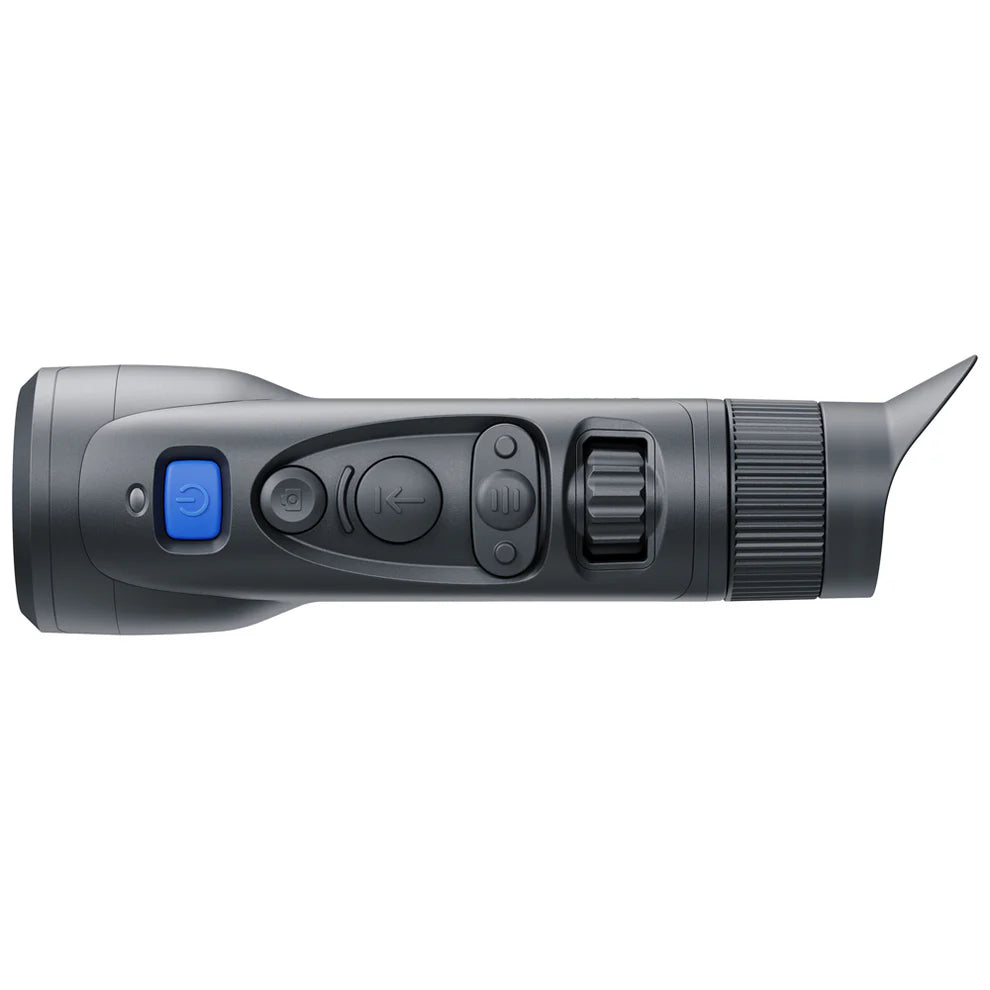

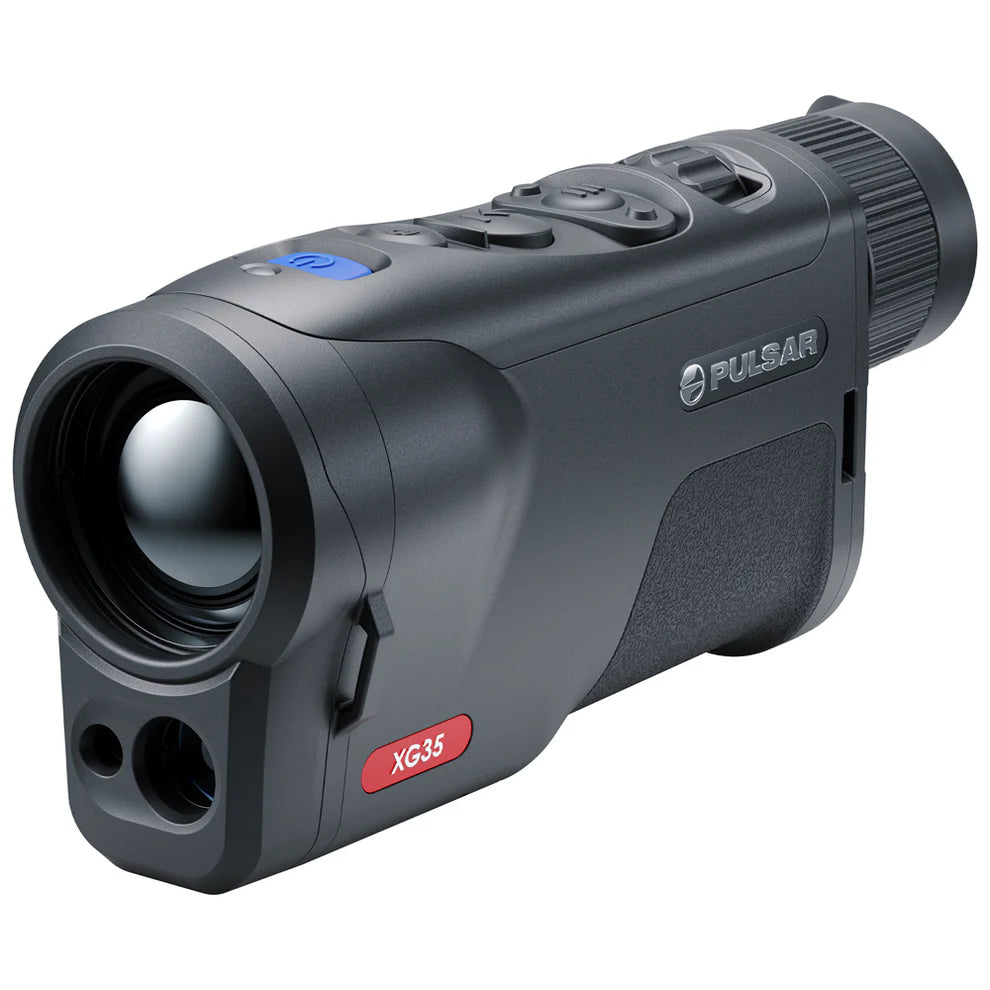

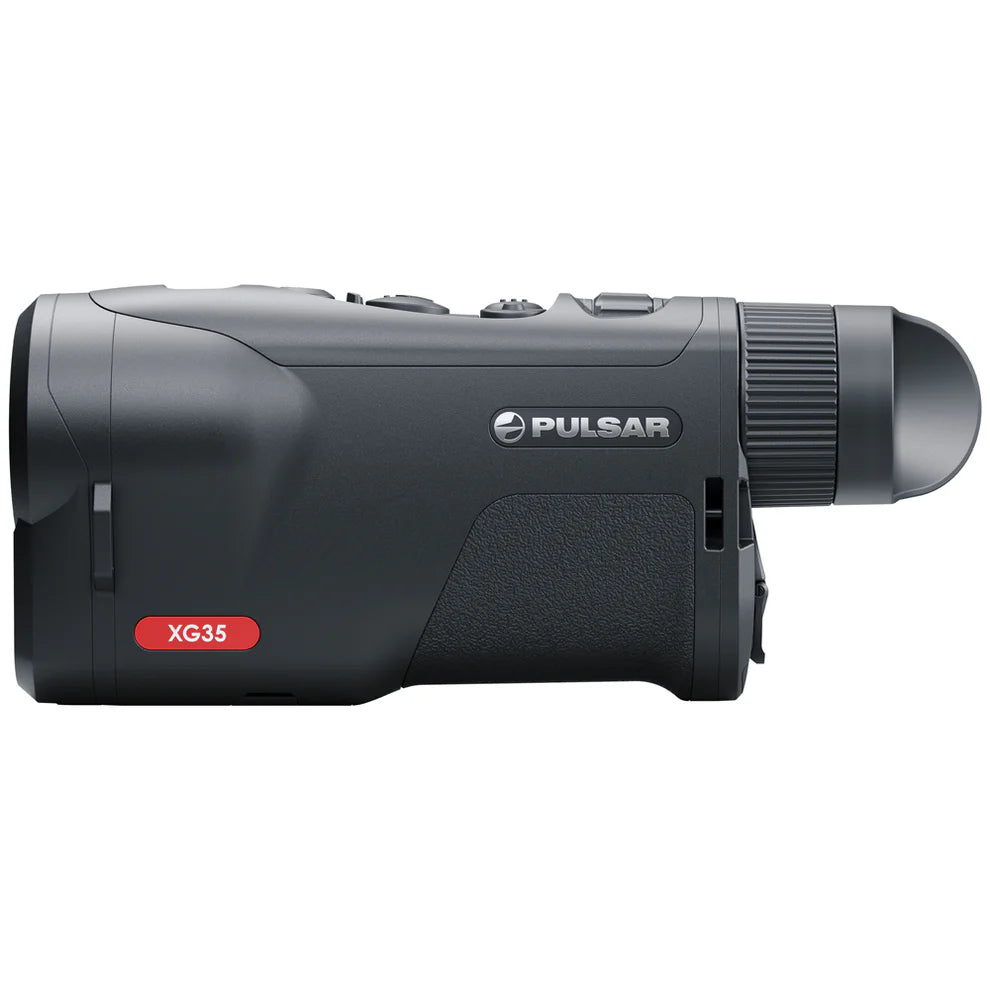

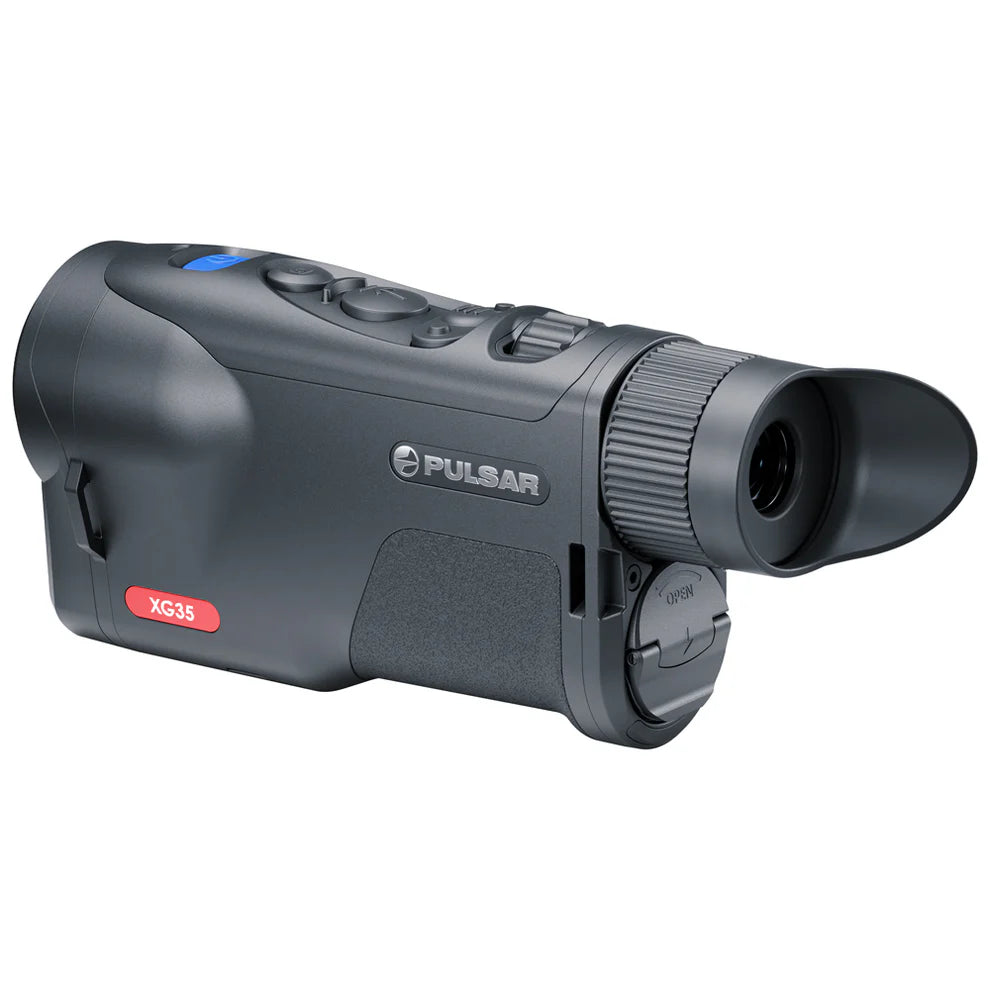

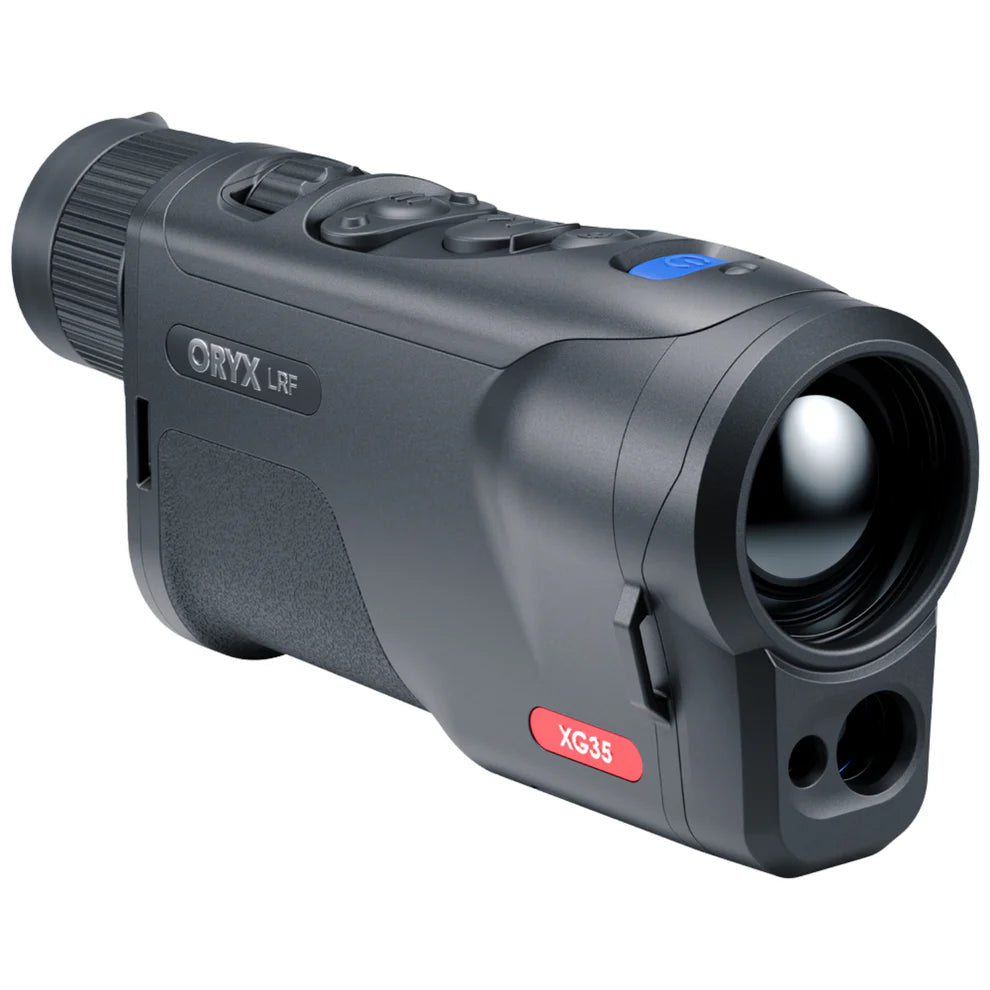

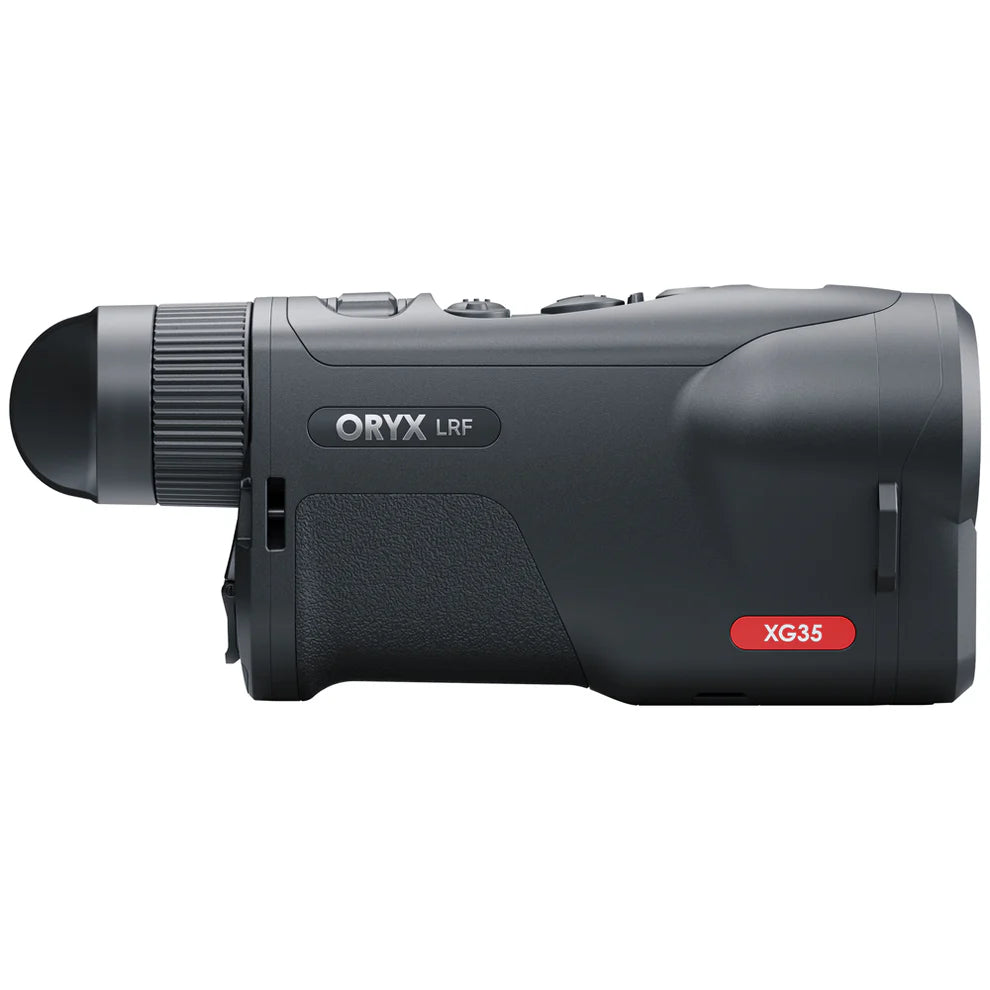

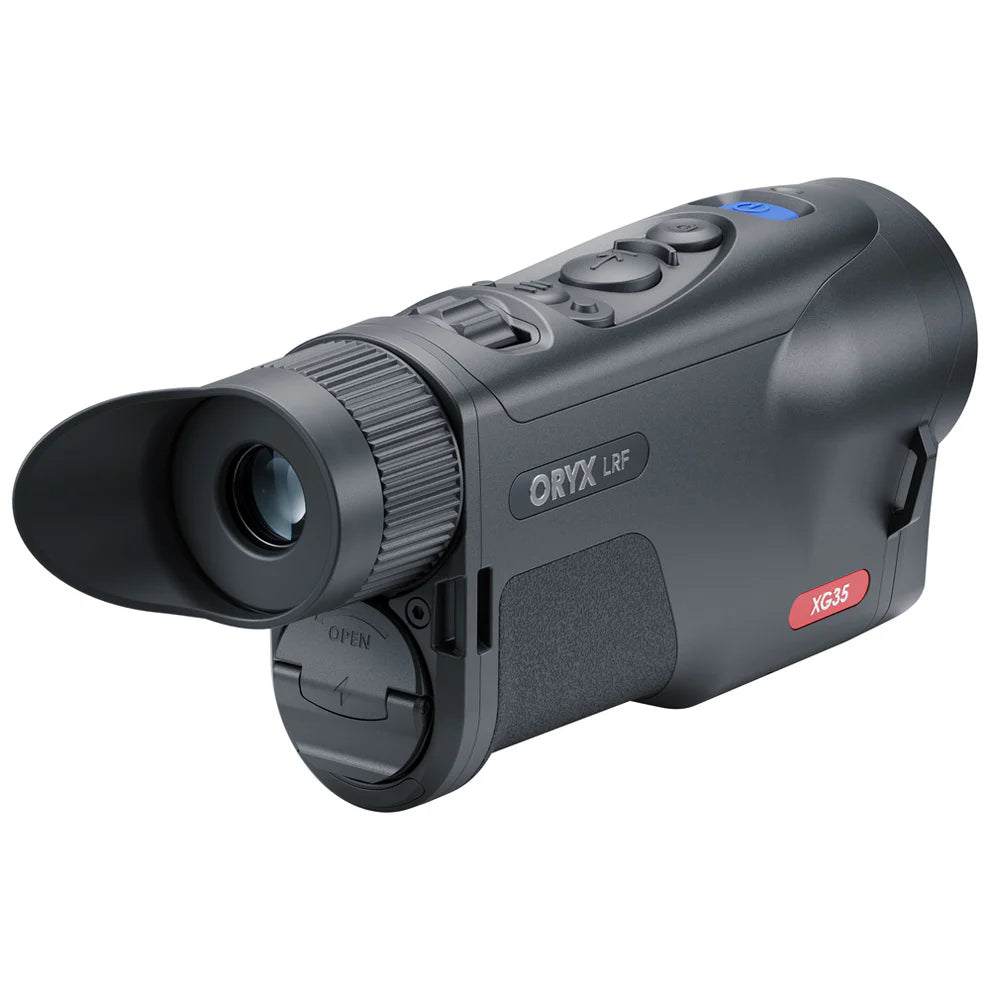

Pulsar Oryx LRF XG35 Thermal Monocular

Main

• Sensor640x480 pix. @ 12 µm (sNETD <20 mK)
• Objective lensF35/1.0
• Magnification, x2.5 - 20
• Field of view (HxV), degrees12.5
• Detection range, yds1950+

• Sensor

  • Type uncooled
  • Resolution, pixels640x480
  • Pixel pitch, µm12
  • NETD, mK<40
  • Frame rate, Hz50
  • sNETD, mK<20

  Optics

  • Objective lensF35/1.0
  • Magnification, x2.5-20x
  • Field of view (HxV), degrees12.5
  • Eye relief, mmN/A

  Display

  • Type AMOLED
  • Resolution, pixels1024x768

  Range Performance

  • Detection range, yds1950+

  Video Recorder

  • Video / photo resolution, pixel960x600
  • Video / photo format.mp4 / .jpg
  • Built-in memory, GB64

  Wi-Fi

  • Wireless Protocol Wi-Fi
  • Wireless Standard IEEE 802.11 b/g/n/ac (WPA)
  • Frequency, GHz2.4 / 5

  Environmental Characteristics

  • Degree of protection, IP code (IEC60529)IP67 (fully waterproof, shockproof, dustproof)
  • Operating temperature range, °F-13 - +104

  Connections and Compatibilities

  • Mount, type1/4"
  • Supported Application Stream Vision 2

  Power Supply

  • Output voltage, V3.0 – 4.2
  • Battery type Li-Ion Battery APS5 (Internal & External)
  • Capacity, mAh4900 mAh
  • Operating time on battery pack (at t=22°C), h *12
  • External power supply, VUSB-C

  Weight & Size

  • Body material Magnesium alloy
  • Dimensions, in7x2x3
  • Weight, oz17.64 (with battery)

• High-quality reinforced magnesium alloy housing

  The Oryx is designed for constant, often hard use. Its magnesium alloy housing is light and strong at the same time. The housing reliably protects the internal components of a thermal imaging device from shocks, drops, moisture, heat or cold. At the same time, its metal housing effectively removes the heat from electronics, minimizes image noise and increases consistency of the device operation during long-term observation.





  Customization & Display Settings

  The Oryx LRF XG35 offers fully adjustable brightness and contrast settings, allowing users to fine-tune their viewing experience. A convenient quick-access menu provides seamless control over frequently used features, making on-the-go adjustments fast and intuitive. Whether navigating dense forests or open fields, this thermal monocular adapts to your needs.




  Mounting & Ergonomics



  Designed for convenience, the Oryx LRF XG35 features a built-in tripod socket for stable hands-free operation. A clip mount option allows users to secure the device to their gear or clothing, providing quick access when needed. Its compact and lightweight design ensures comfortable extended use in the field.



  Battery Life & Power Options

  Powered by a removable APS5 Li-Ion battery pack (4900 mAh), the Oryx LRF XG35 provides up to 12 hours of continuous operation. For extended use, the device supports USB Type-C external power delivery, ensuring uninterrupted performance during long hunting trips, tactical missions, or surveillance operations.



  Color Palettes and Image Enhancement



  With multiple thermal color palettes, users can optimize the display for various environments and conditions. The image smoothing filter enhances clarity when increasing magnification, ensuring a detailed view of targets and surroundings. This feature is particularly useful for spotting game, detecting heat signatures, and performing surveillance with surgical precision.
