Pulsar Axion XQ19 Compact Thermal Monocular

Name: Pulsar Axion XQ19 Compact Thermal Monocular
Brand: Pulsar
Price: 999.97 USD
Availability: InStock

$999.97 USD

Sale Sold out

Specs

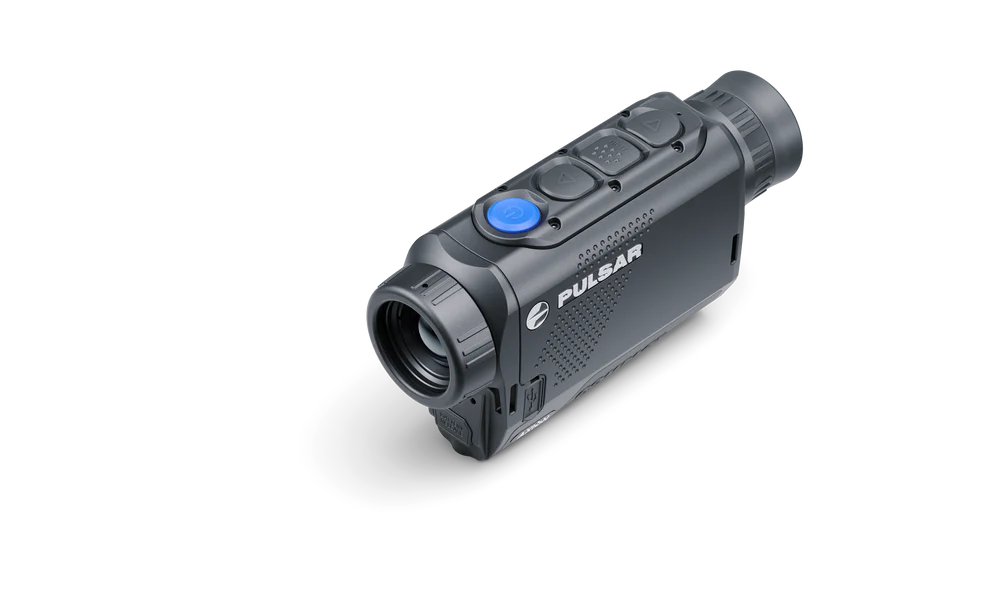

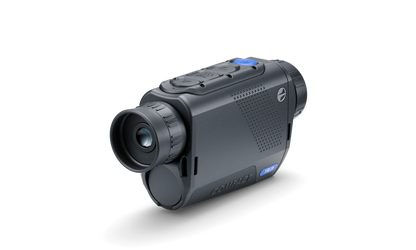

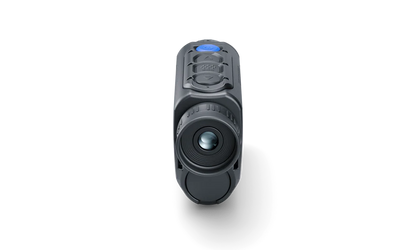

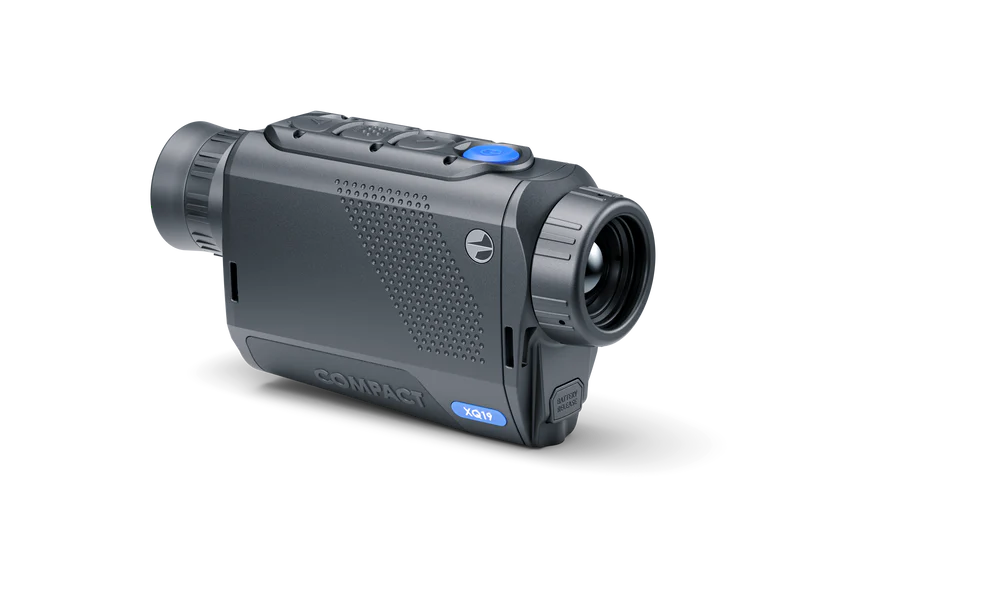

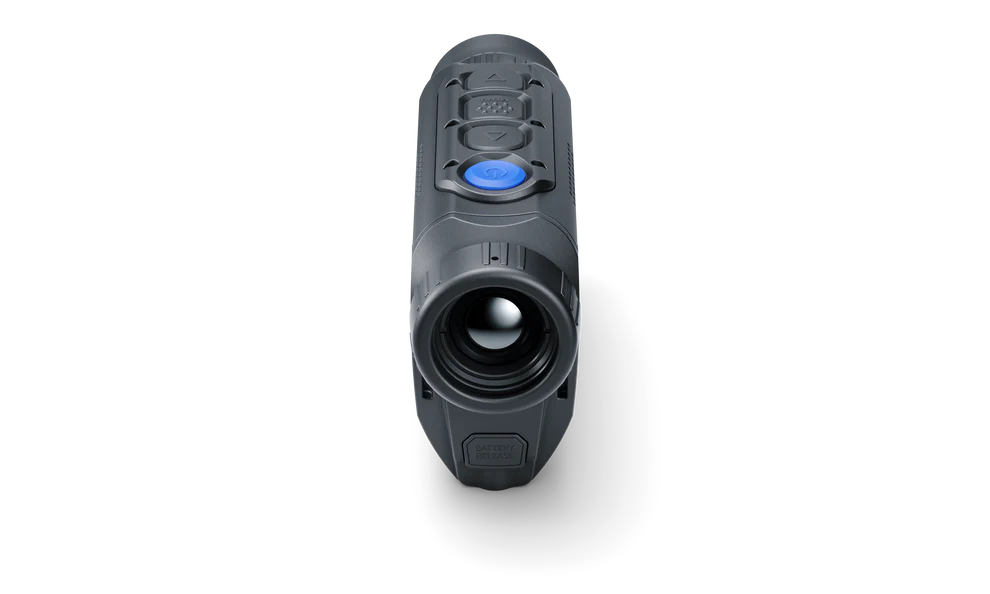

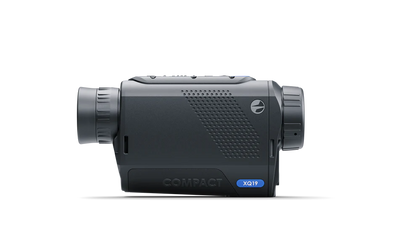

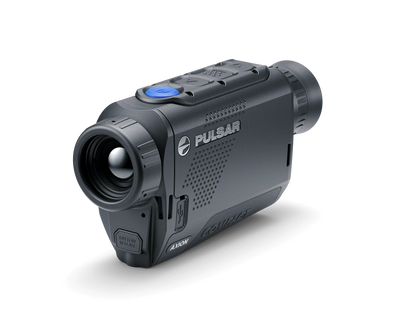

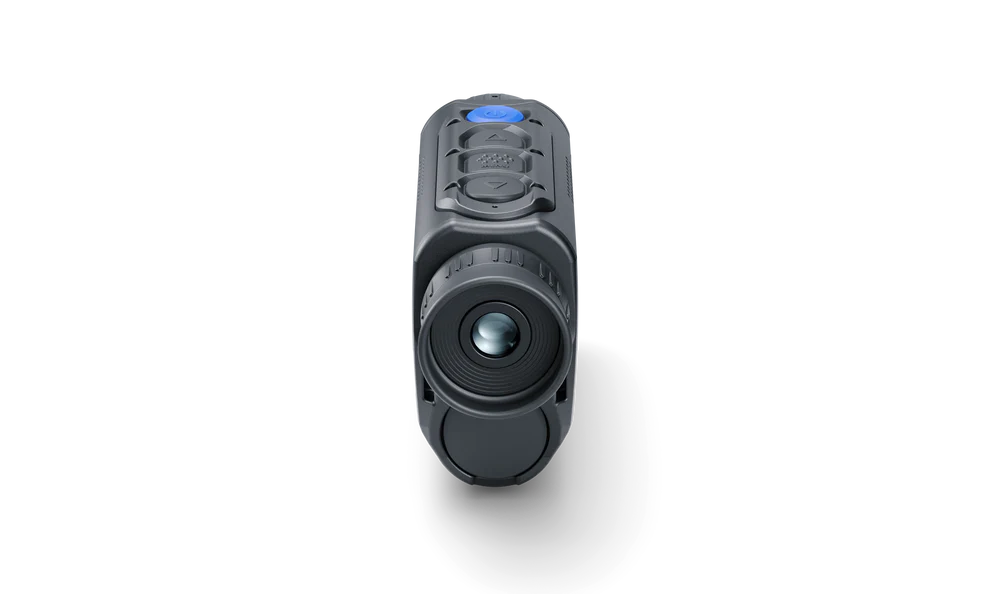

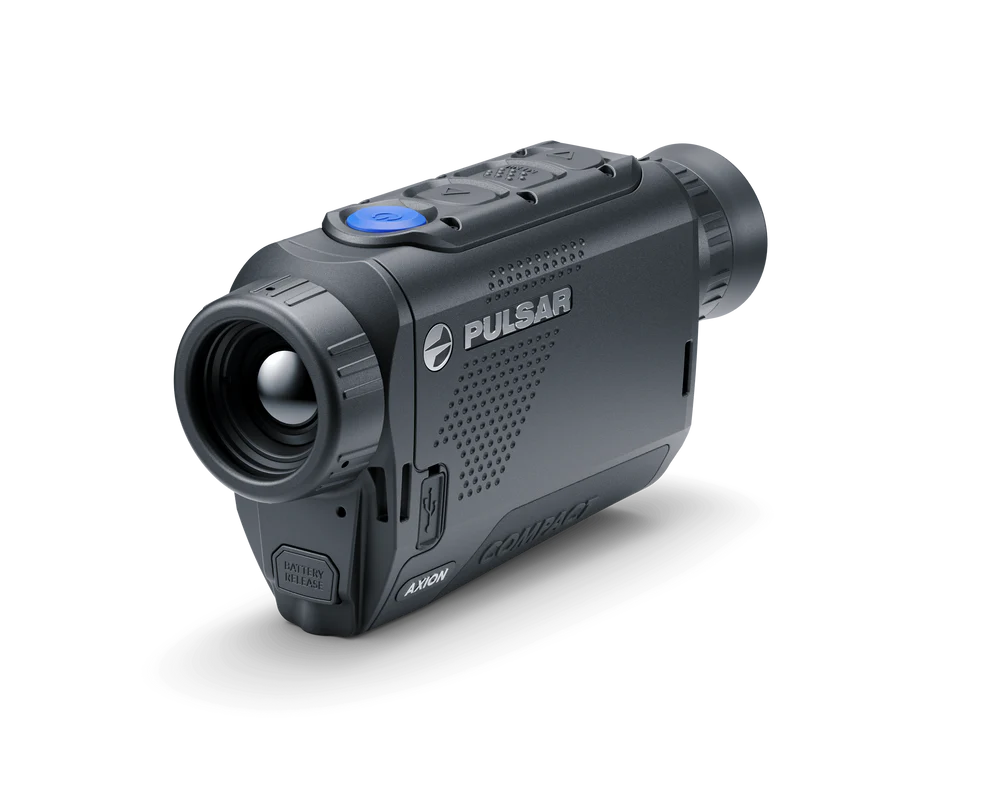

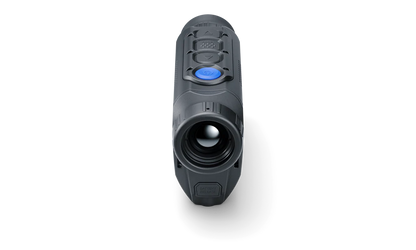

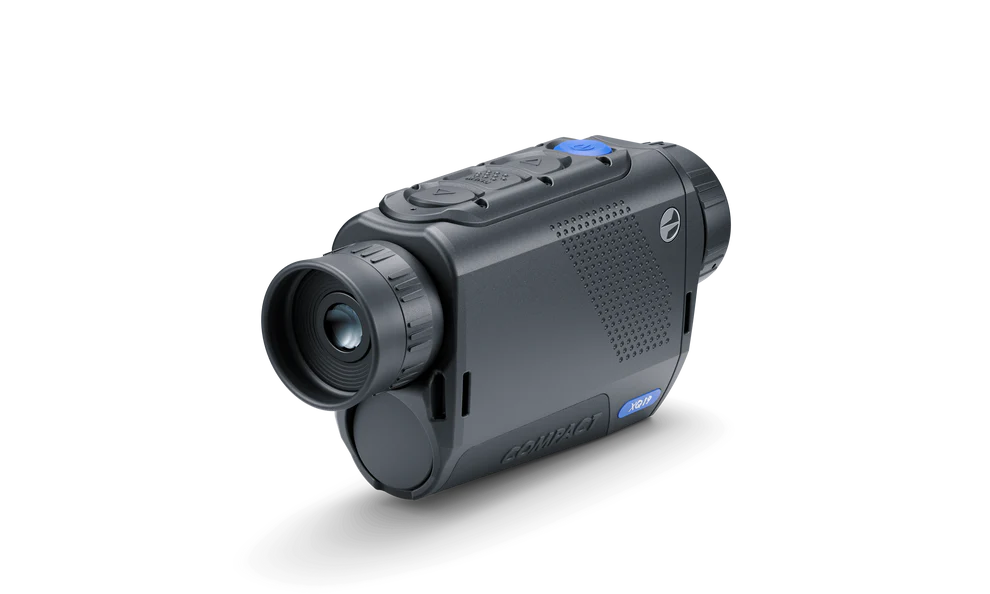

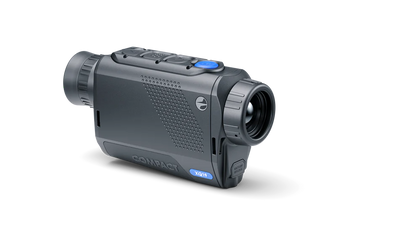

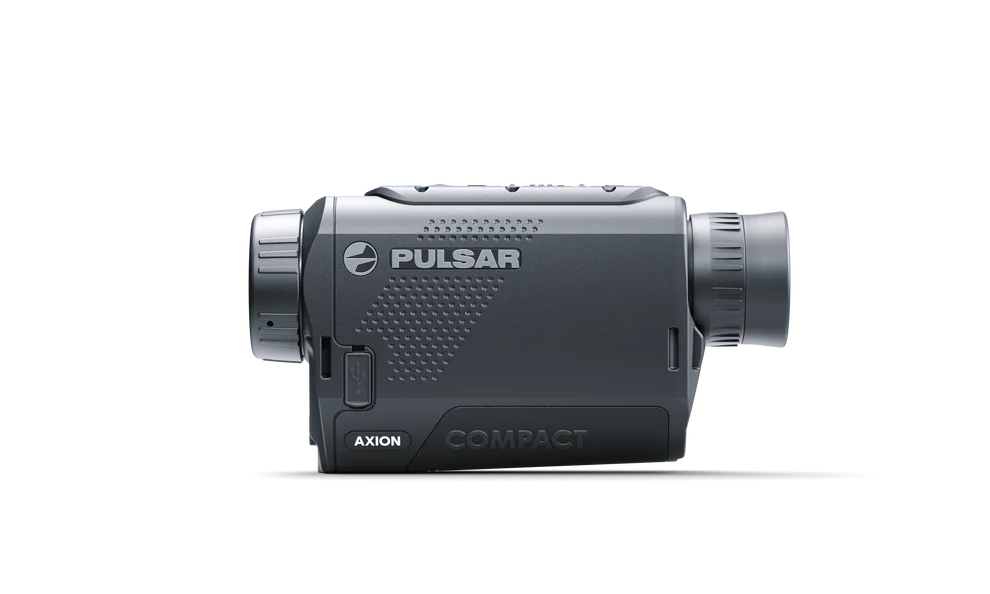

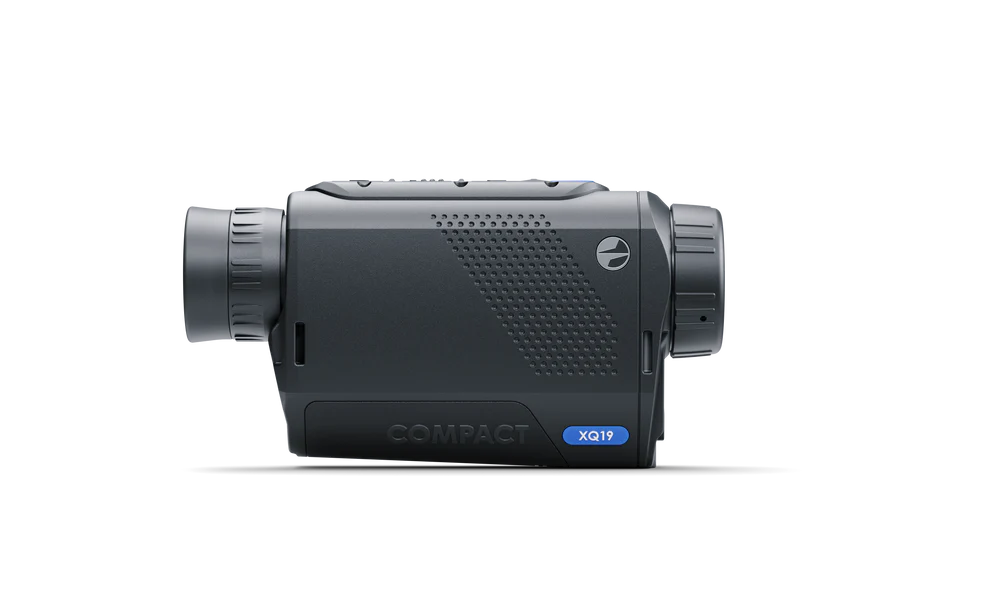

A compact thermal imaging device with a lens, buttons, and a textured surface, designed for outdoor use.

Axion XQ19 Compact Thermal Monocular

Main

Sensor384x288 pix. @ 17μm (sNETD <18 mK)
Objective lensF19/1.0
Magnification, x1.5 - 6
Field of view (HxV), degrees19.5°
Detection range, yds820

Sensor

Typeuncooled
Resolution, pixels384x288
Pixel pitch, µm17
NETD, mK<18
Frame rate, Hz50
sNETD, mK<25

Optics

Objective lensF19/1.0
Magnification, x1.5-6x
Field of view, degrees19.5
Eye relief, mm14

Display

TypeAMOLED
Resolution, pixels640x400

Range Performance

Detection range, yds820

Video Recorder

Video / photo resolution, pixel960x600
Video / photo format.mp4 / .jpg
Built-in memory, GB64

Wi-Fi

Wireless ProtocolWi-Fi
Wireless StandardIEEE 802.11 b/g/n/ac
Frequency, GHz2.4 / 5

Environmental Characteristics

Degree of protection, IP code (IEC60529)IPХ7(waterproof)
Operating temperature range, °F-13...+104

Connections and Compatibilities

Mount, type1/4"
Supported ApplicationStream Vision 2

Power Supply

Output voltage, V3.0 – 4.2
Battery typeAPS3 External
Capacity, mAh3200
Operating time on battery pack (at t=22°C), h *8
External power supply, V5 USB-C

Weight & Size

Body materialMagnesium alloy
Dimensions, in5.3x1.5x2.8
Weight, oz8.8 (with battery)

High-quality reinforced magnesium alloy housing

The Axion is designed for constant, often hard use. Its magnesium alloy housing is light and strong at the same time. The housing reliably protects the internal components of a thermal imaging device from shocks, drops, moisture, heat or cold. At the same time, its metal housing effectively removes the heat from electronics, minimizes image noise and increases consistency of the device operation during long-term observation.

Dual Wi-Fi waveband support 2.4 / 5 GHz

In Axion thermal imagers, the standard smartphone connection frequency range via a 2.4 GHz WiFi channel is complemented with an effective 5 GHz range. The 5 GHz connection offers better bandwidth, a faster data transfer rate, noise immunity and improved connection stability, resulting in more productive and easier operation of the thermal imager with a smartphone.

User mode

Use the brightness and contrast adjustments to maximise the detail and informative value of the image in specific observation conditions. The User Mode function saves selected brightness and contrast settings in the device's memory providing optimal image quality for the next use of the thermal imager immediately, with no additional adjustments needed.

European made thermal imaging sensors

The Axion Compact Series is ideal for scanning and game finding. Quality European made sensors ensure excellent image in all conditions. A 384x288/17 micron sensor provides enough detail for hot object identification.

Extended battery life. Up to 8 hours on a single charge

A quick-change APS3 rechargeable battery provides 8 hours of continuous operation of the thermal imaging device on a single charge. The battery is removed from a battery housing and replaced with a new one in seconds. The battery is charged in a special device or inside the device from a PC, household power system or power bank via USB-C. The same sources are used for external power supply of a thermal imaging device.

3 levels of sensitivity amplification

The Axion thermal imaging devices use a new approach to image optimization depending on the purposes and conditions of observation and provide high-quality rendering of both target objects and background. Three levels of signal amplification in combination with a connected smoothing filter and fine brightness and contrast adjustments give the hunter great opportunities for long-range detection of the animal under different weather and temperature conditions and determining its trophy qualities.

Wide Field Of View For Easy Scanning

Axion Compact monoculars have a wide field of view which simplifies scanning and searching for objects which emit heat. Its wide field of view allows the observer to quickly spot all hot objects and focus on the most interesting ones, while simultaneously keeping much of the landscape within the unit’s peripheral vision.

A selection of 8 color palettes

A choice of 8 color palettes allows the user to optimize the unit for specific tasks as well as react to changing observation conditions. White Hot, Black Hot and Red Hot are optimal for object detection, Rainbow and Ultramarine help increase chances for recognition & identification, while Red Monochrome, Sepia and Violet are most suitable for long observation in the night.

Pocket-Sized And Light Weight

Axion monoculars have a space-saving, pocket-sized design. Weighing less than 9 ounces, they’re the best thermal imaging monoculars for those who look for a truly compact option, both for hunting and nocturnal observation. The device is easy to grip and operate for both right-handed and left-handed people due to the symmetrical arrangement of buttons on the upper panel.

Stream Vision 2 App Support for iOS and Android

The built-in Wi-Fi module connects the device with either Android or iOS smartphones using the Stream Vision 2 mobile application. This combination opens up a wide range of options: wireless device software updates, real-time image transmission to the mobile device screen, remote control digital functions and much more. Users registered in the application are provided with cloud storage space for photos and videos taken with the device.

High-contrast AMOLED Display

A high-contrast AMOLED display has an improved colour rendering, power saving and quick-response, providing sharp and smooth images observing even under frosty conditions.

IPX7 submersion waterproof rated

IPX7 waterproof-rated for protection from heavy rainfall, snow or other precipitation. The unit is designed to run flawlessly, even after submersion in up to 1 meter of water for up to 30 minutes.
