IRAY BOLT TX60C Thermal Weapon Sight 1024x1024 60mm with Free LRF

IRAY BOLT TX60C Thermal Weapon Sight 1024x1024 60mm with Free LRF

Regular price $5,999.00 USD
Regular price Sale price $5,999.00 USD
Sale Sold out
Shipping calculated at checkout.
Description:

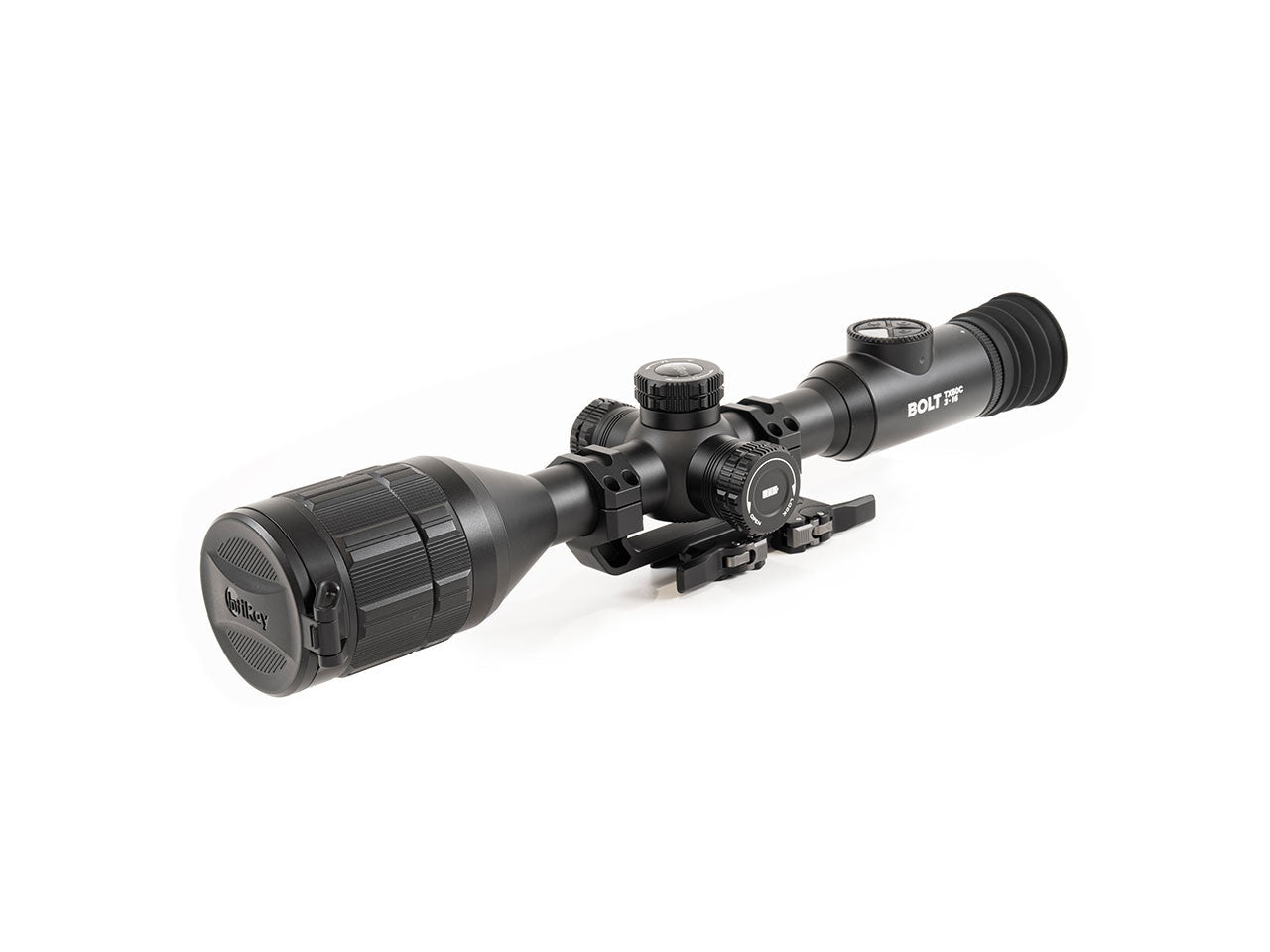

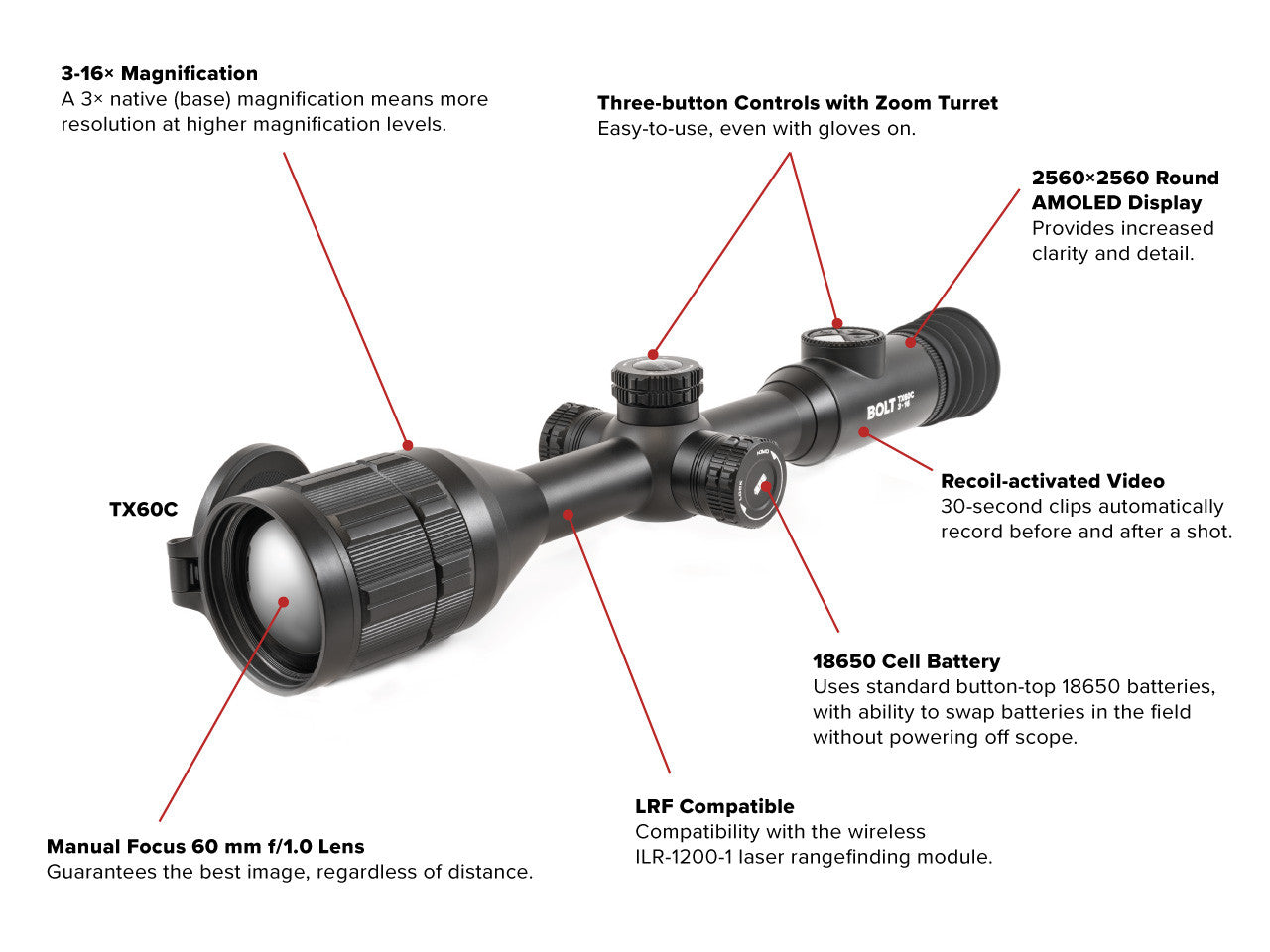

The BOLT TX60C provides hunters with a high-resolution 1024×1024 InfiRay Micro II thermal sensor at a native 3× magnification and digital zoom up to 16×, ideal for predator hunting and longer-range shots. Increased resolution paired with a higher base magnification means less resolution is lost at higher zoom levels. A fast f/1.0 germanium objective lens, a sensitivity rating of ≤18mK, and a round 2560×2560 AMOLED display provide exceptional detail and precision. The round 30mm body design allows for easy mounting with the included one-piece cantilever mount or standard scope rings. Wirelessly paired with the ILR-1200-1 Laser Rangefinding module, the TX60C is capable of displaying real-time ranges on-screen and even calculating a firing solution using customizable projectile data and the onboard ballistic calculator.

  • Optics

    Objective Focal Length

    60mm

    Detection Range

    2700 Yards

    Optical Magnification

    3X

    Digital Magnification

    4X, stepped

    Horizontal Angular Field of View

    11.7°

    Objective Lens Material

    Germanium

    Vertical Angular Field of View

    11.7°

    Objective Diameter

    60mm

    Objective F#

    1.0

    Focusing Mechanism

    Manual Focus

    Eye Relief

    50mm

    Diopter Range

    -5 - +3.5

    Display Type

    AMOLED

    Display Resolution

    2560×2560

  • Features & Performance

    Reticle

    7 (1 Dynamic, 5 Static, 1 DIY)

    Color Palettes

    White Hot, Black Hot, Red Hot, Color, Violet, Crimson, Viridian

    Rangefinder

    Bluetooth ILR-1200-1 LRF (Optional)

    Stand-by Mode

    Yes

    Picture-in-Picture

    Yes

    Image Capture

    Yes

    Wifi

    Yes

    Mobile App

    Yes

    User-Updatable Firmware

    Yes

    Connector Type

    USB-C

    Connector Output

    Power/Data

    Storage Capacity

    128GB

    Onboard Recording

    Yes

    Power Source

    USB-C External, 18650 Battery

    Run Time

    8+

    External Power Source

    USB-C

    Warranty

    5 Years

    Startup Time

    <10 Seconds, Instant from Standby

    Country of Manufacture

    China

  • Environmental Specifications

    Operating Temperature Range

    -4°F~122°F

    Ingress Protection

    IP67

    Recoil Rating

    1000 g/s² (300 Win./7mm Mag)

  • Physical

    Length

    15.12

    Weight

    35.27 Oz

    Height

    3.03

    Width

    4.09

    Mounting Interface

    Picatinny MIL-STD 1913 Rail

    Housing Material

    Aluminum

  • Sensor Specifications

    Device Technology

    Thermal Imaging

    Sensor Type

    InfiRay MICRO II

    Sensor Resolution

    1024x1024

    Sensor Pixel Size

    12μm

    Sensor Frame Rate

    50hz

    Thermal Sensitivity

    <18mk

    Non-Uniformity Correction (NUC)

    Manual, Automatic, Semi-Automatic

  • Optics

    Objective Focal Length

    60mm

    Detection Range

    2700 Yards

    Optical Magnification

    3X

    Digital Magnification

    4X, stepped

    Horizontal Angular Field of View

    11.7°

    Objective Lens Material

    Germanium

    Vertical Angular Field of View

    11.7°

    Objective Diameter

    60mm

    Objective F#

    1.0

    Focusing Mechanism

    Manual Focus

    Eye Relief

    50mm

    Diopter Range

    -5 - +3.5

    Display Type

    AMOLED

    Display Resolution

    2560×2560

  • Features & Performance

    Reticle

    7 (1 Dynamic, 5 Static, 1 DIY)

    Color Palettes

    White Hot, Black Hot, Red Hot, Color, Violet, Crimson, Viridian

    Rangefinder

    Bluetooth ILR-1200-1 LRF (Optional)

    Stand-by Mode

    Yes

    Picture-in-Picture

    Yes

    Image Capture

    Yes

    Wifi

    Yes

    Mobile App

    Yes

    User-Updatable Firmware

    Yes

    Connector Type

    USB-C

    Connector Output

    Power/Data

    Storage Capacity

    128GB

    Onboard Recording

    Yes

    Power Source

    USB-C External, 18650 Battery

    Run Time

    8+

    External Power Source

    USB-C

    Warranty

    5 Years

    Startup Time

    <10 Seconds, Instant from Standby

    Country of Manufacture

    China

  • Environmental Specifications

    Operating Temperature Range

    -4°F~122°F

    Ingress Protection

    IP67

    Recoil Rating

    1000 g/s² (300 Win./7mm Mag)

  • Physical

    Length

    15.12

    Weight

    35.27 Oz

    Height

    3.03

    Width

    4.09

    Mounting Interface

    Picatinny MIL-STD 1913 Rail

    Housing Material

    Aluminum

  • Sensor Specifications

    Device Technology

    Thermal Imaging

    Sensor Type

    InfiRay MICRO II

    Sensor Resolution

    1024x1024

    Sensor Pixel Size

    12μm

    Sensor Frame Rate

    50hz

    Thermal Sensitivity

    <18mk

    Non-Uniformity Correction (NUC)

    Manual, Autom
