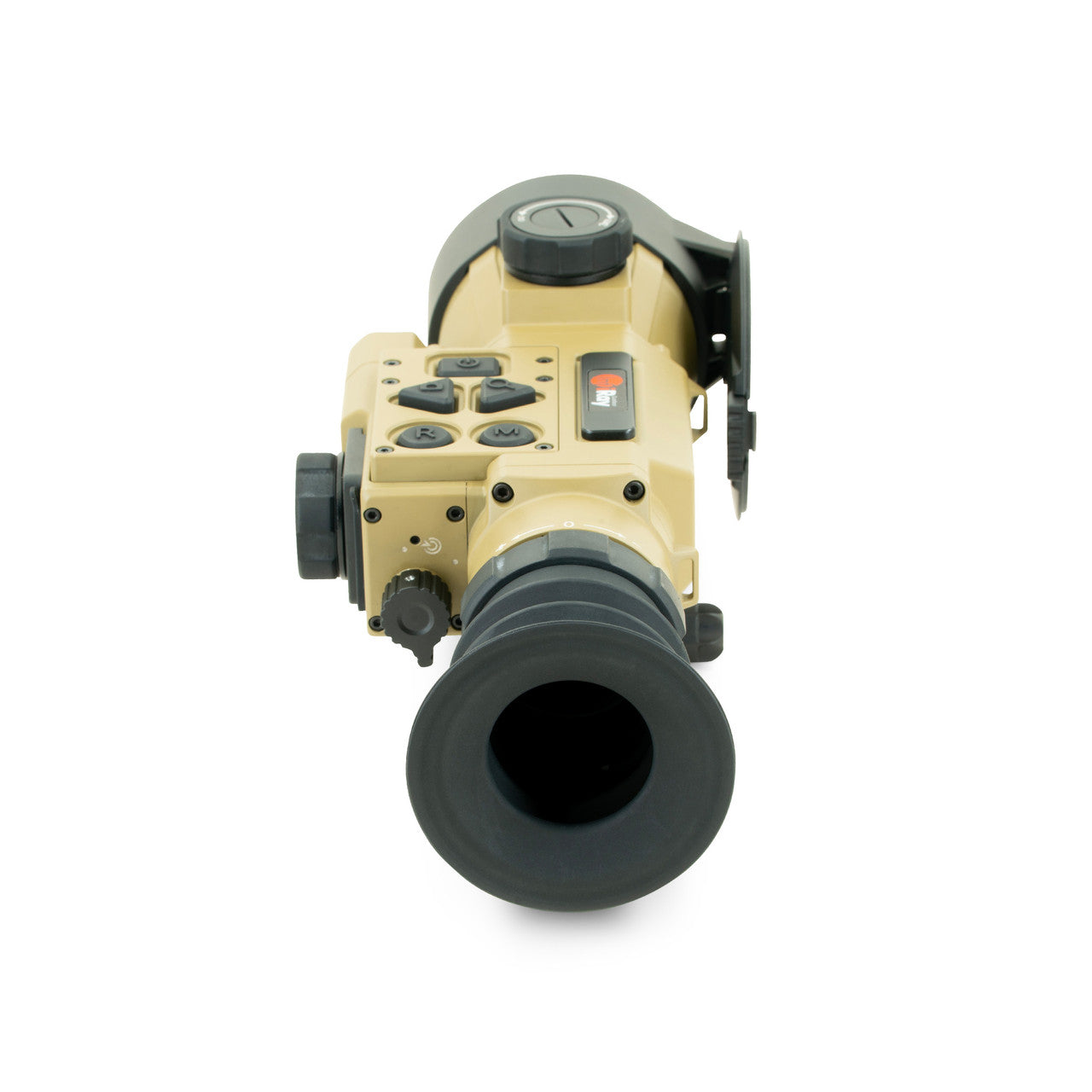

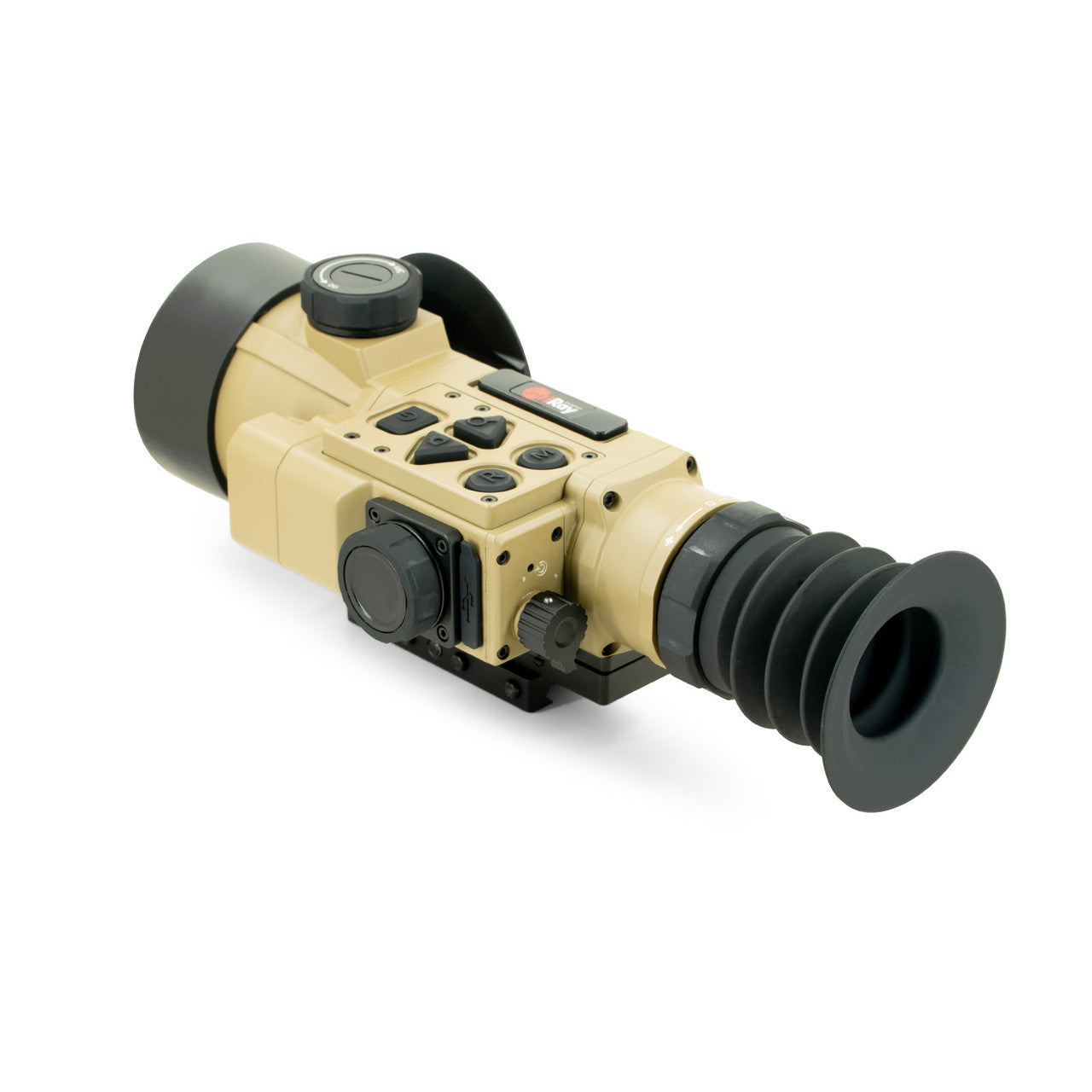

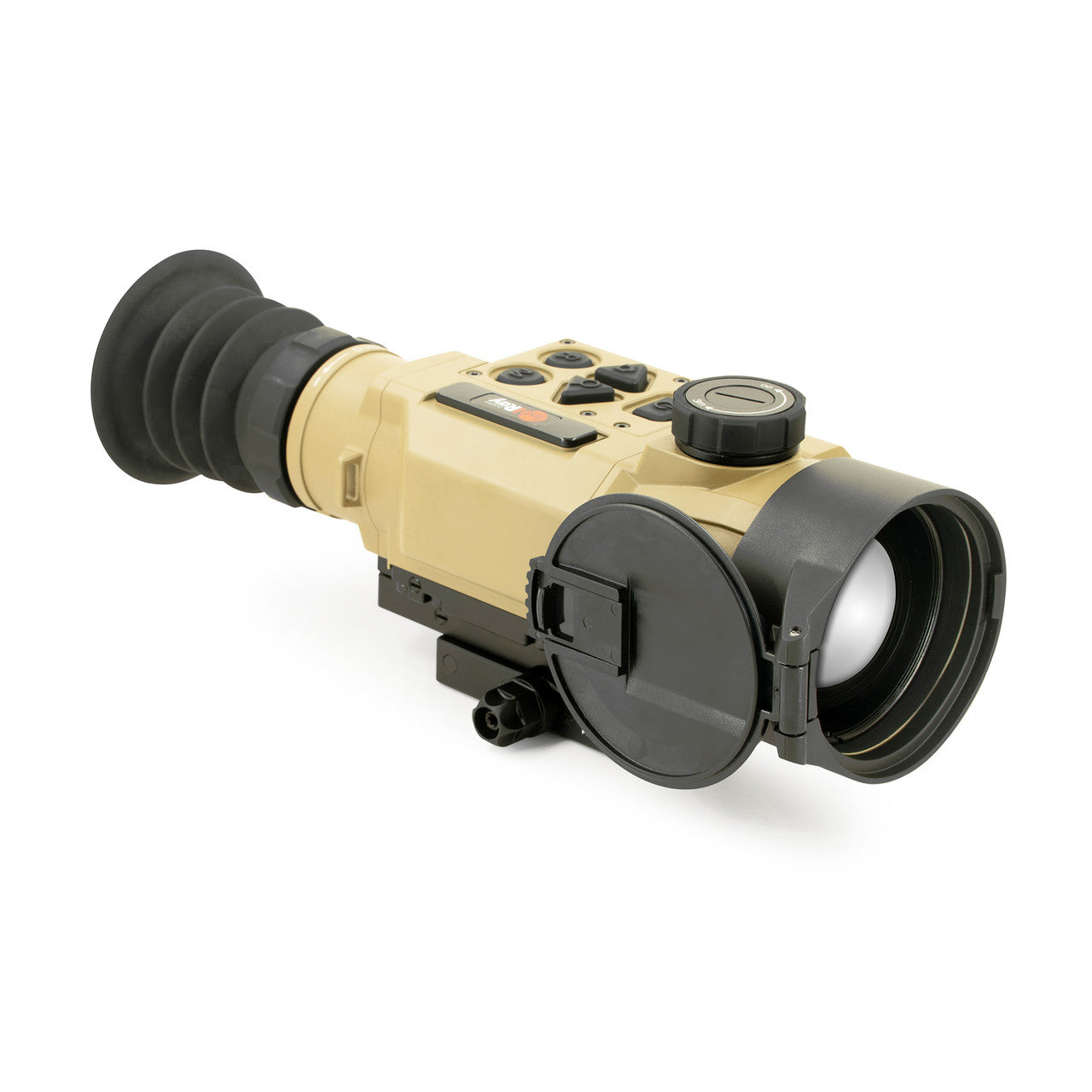

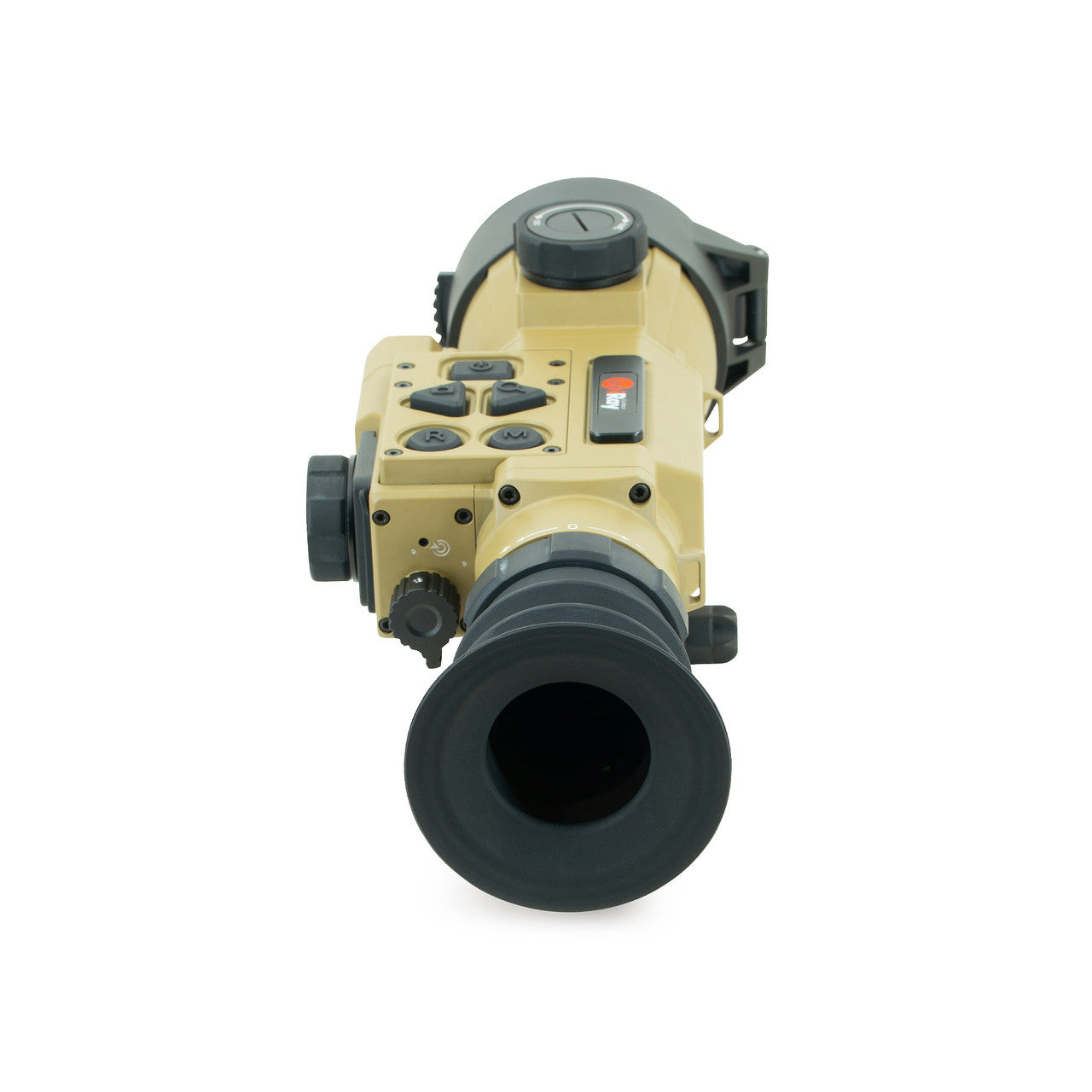

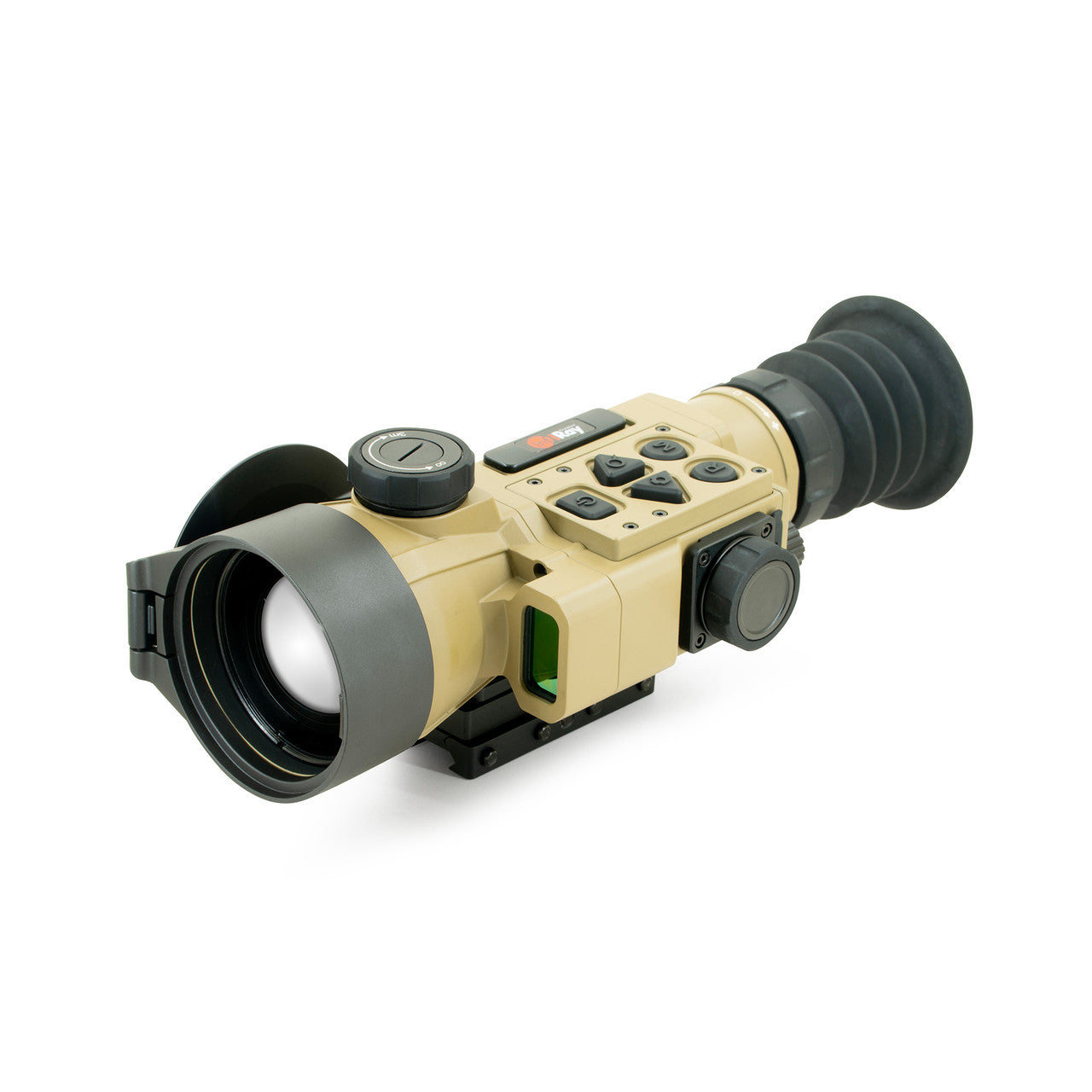

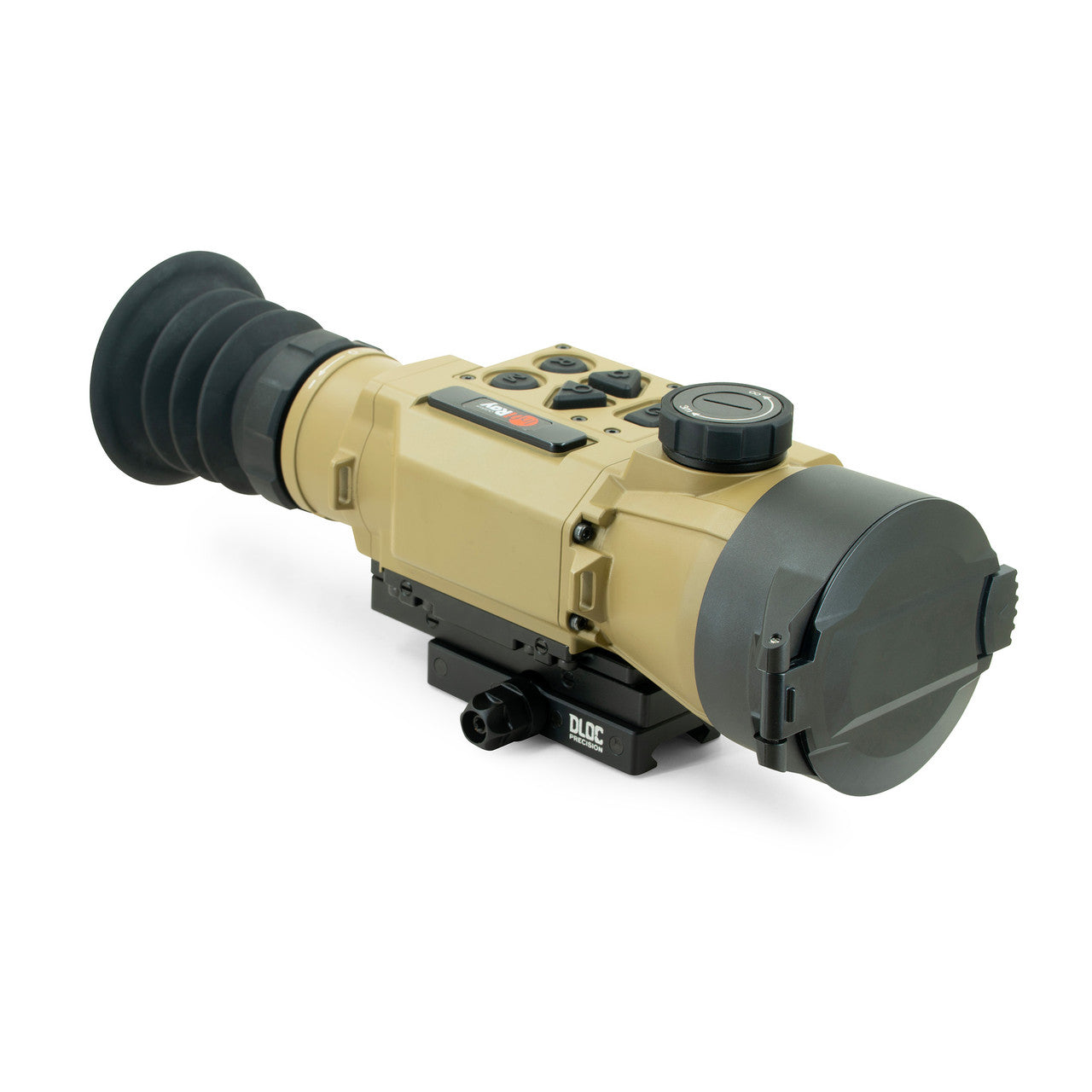

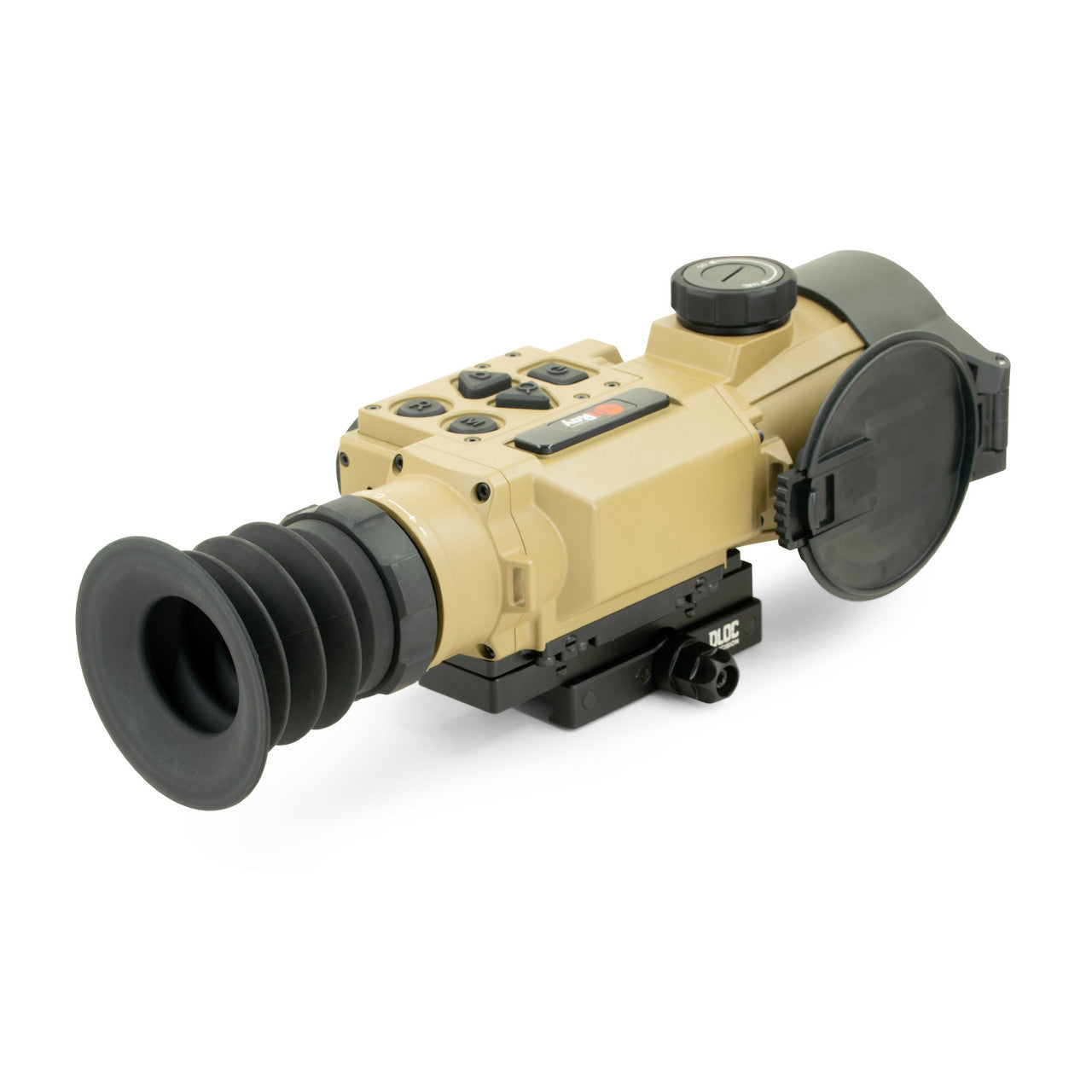

InfiRay Outdoor Hybrid Compact (HCH50) 3.5x 640x480 LRF 50mm (pre-order)

The Hybrid Compact (HCH50R) is the next evolution of the HYBRID series, combining advanced thermal performance with versatile functionality. It features a 50 mm F/0.9 lens and the industry’s first available 10 µm thermal sensor. The 640×480 InfiRay sensor with a ≤15 mK NETD rating delivers exceptional thermal sensitivity and clarity. The Hybrid Compact functions as a weapon sight, thermal clip-on, or handheld monocular. Its 3.5x native magnification and 60 mm eye relief provide a comfortable, immersive view. The “Fast Engine” low-latency architecture (15 ms) and 60 Hz refresh rate ensure a smooth, life-like image, improving target tracking and accuracy. A 1440×1080 AMOLED display provides a crisp image, while the integrated laser rangefinder and ballistic calculator adjust for drop based on target distance. Built-in photo and
video recording with 64GB of internal storage lets you capture every detail.

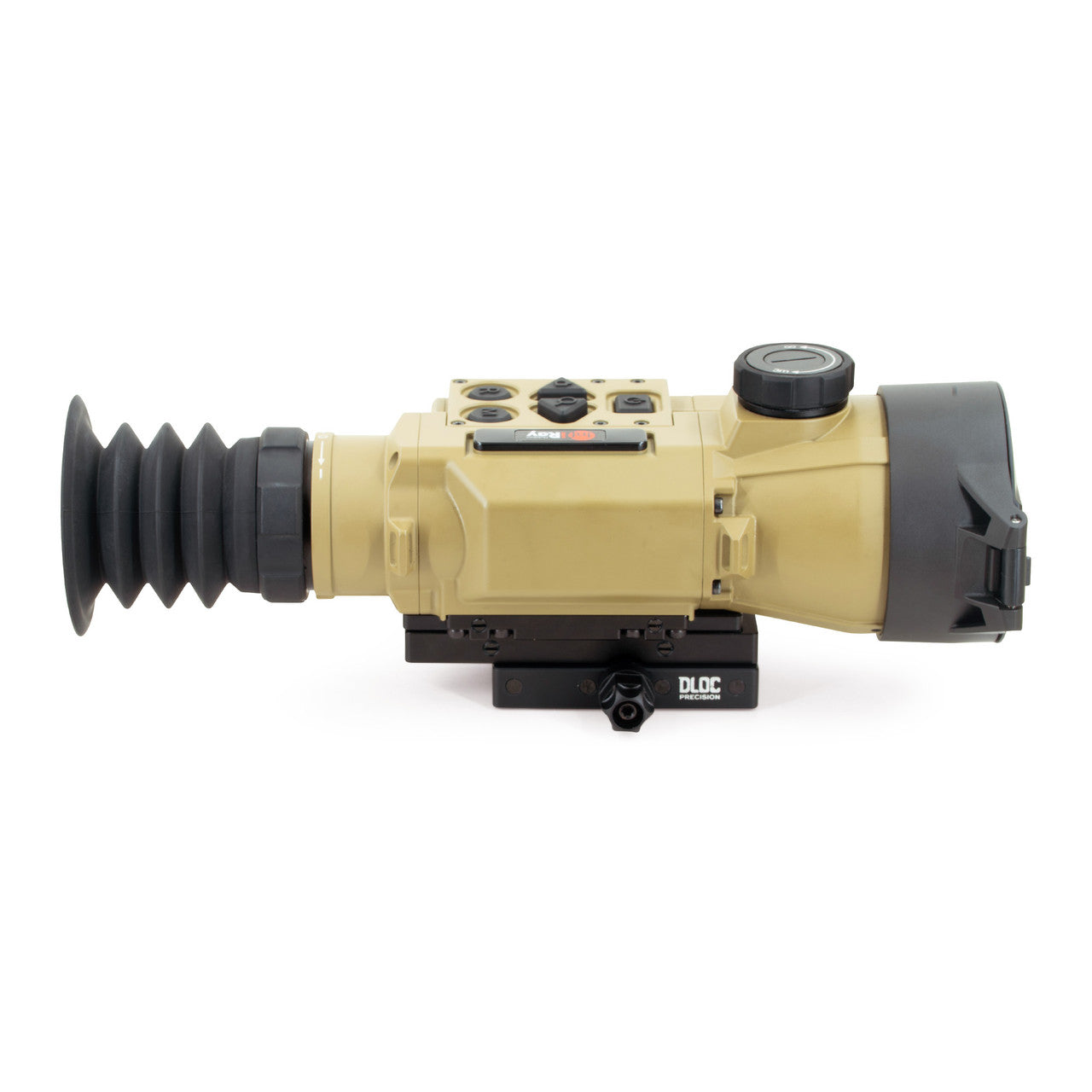

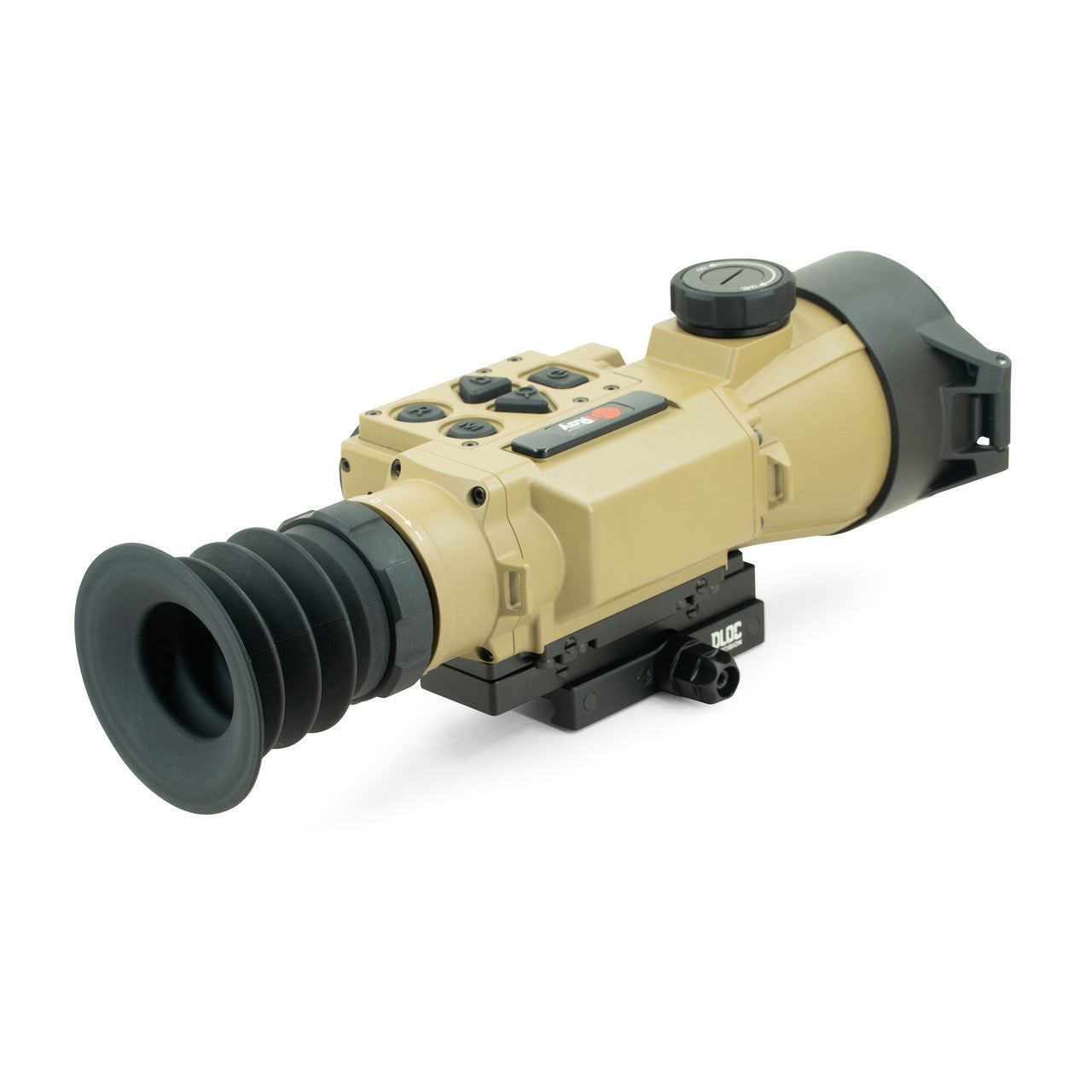

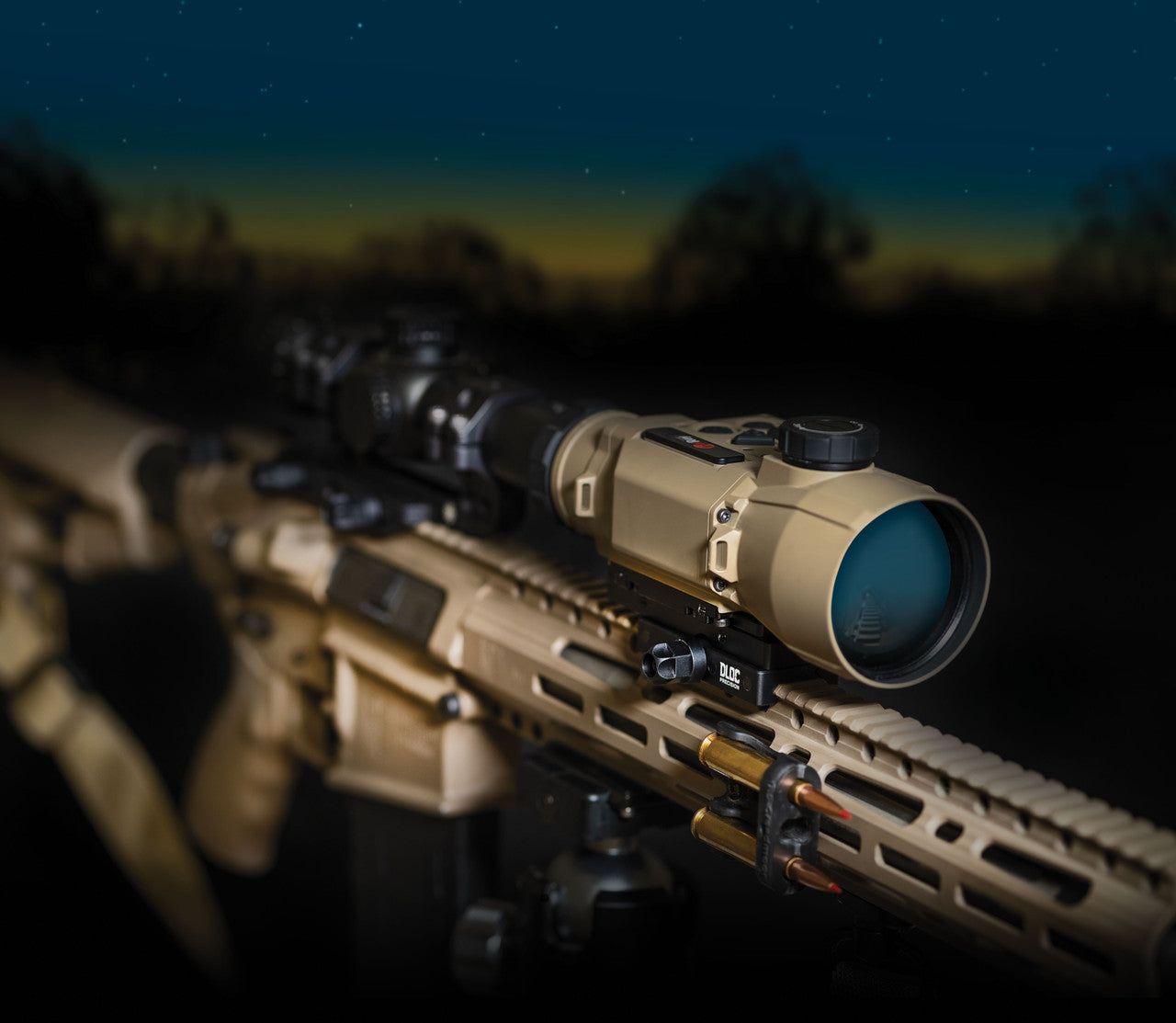

Like other HYBRID series models, the HCH50R can be used as a clip-on thermal (with day scope magnification up to 10×) or as a dedicated thermal weapon sight. The industry’s first available 10 µm sensor increases pixel density by 44%, providing high resolution while reducing the overall size of the unit. Powered by a 18650 cell rechargeable battery , the HCH50R includes a Bluetooth remote for seamless clip-on control and a secure DLOC Picatinny rail mount for quick, repeatable attachment. The HCH50R comes with a durable hard case for reliable protection in the field.

• Optics

  Objective Focal Length

  50mm

  Detection Range

  3060 Yards

  Optical Magnification

  3.5X

  Display Type

  AMOLED

  Eye Relief

  60mm

  Digital Magnification

  8X

  Diopter Range

  -5 to +5

  Vertical Angular Field of View

  5.5°

  Horizontal Angular Field of View

  7.3°

  Focusing Mechanism

  Manual Focus

  Objective F#

  0.9

  Objective Diameter

  50mm

  Objective Lens Material

  Germanium

  Display Resolution

  1440×1080

• Features & Performance

  Startup Time

  <10 Seconds, Instant from Standby

  Rangefinder

  Integrated 1200 yd LRF

  Color Palettes

  White Hot, Black Hot, Red Hot, Color, Violet, Crimson, Viridian

  Picture-in-Picture

  Yes

  Storage Capacity

  64GB

  Connector Output

  Power/Data

  User-Updatable Firmware

  Yes

  Mobile App

  Yes

  One-Shot Zero

  Yes

  Stand-by Mode

  Yes

  Warranty

  5 Years

  Run Time

  7+

  Power Source

  USB-C External, 18650 Battery

  Reticle

  8 (7 Static, 1 DIY)

  Connector Type

  USB-C

  External Power Source

  USB-C

  Country of Manufacture

  China

  Wifi

  Yes

  Onboard Recording

  Yes

  Image Capture

  Yes

  Video Output

  Yes

• Environmental Specifications

  Operating Temperature Range

  -4°F~122°F

  Recoil Rating

  1000 g/s² (300 Win./7mm Mag)

  Ingress Protection

  IP67

• Physical

  Mounting Interface

  DLOC

  Housing Material

  Magnesium Alloy

  Weight

  25.56

  Height

  3.07

  Width

  4.05

  Length

  9.87

• Sensor Specifications

  Non-Uniformity Correction (NUC)

  Manual, Automatic, Semi-Automatic

  Device Technology

  Thermal Imaging

  Sensor Resolution

  640×480

  Sensor Type

  InfiRay MICRO II

  Sensor Pixel Size

  10μm

  Thermal Sensitivity

  <15mk

  Sensor Frame Rate

  60hz/30hz
