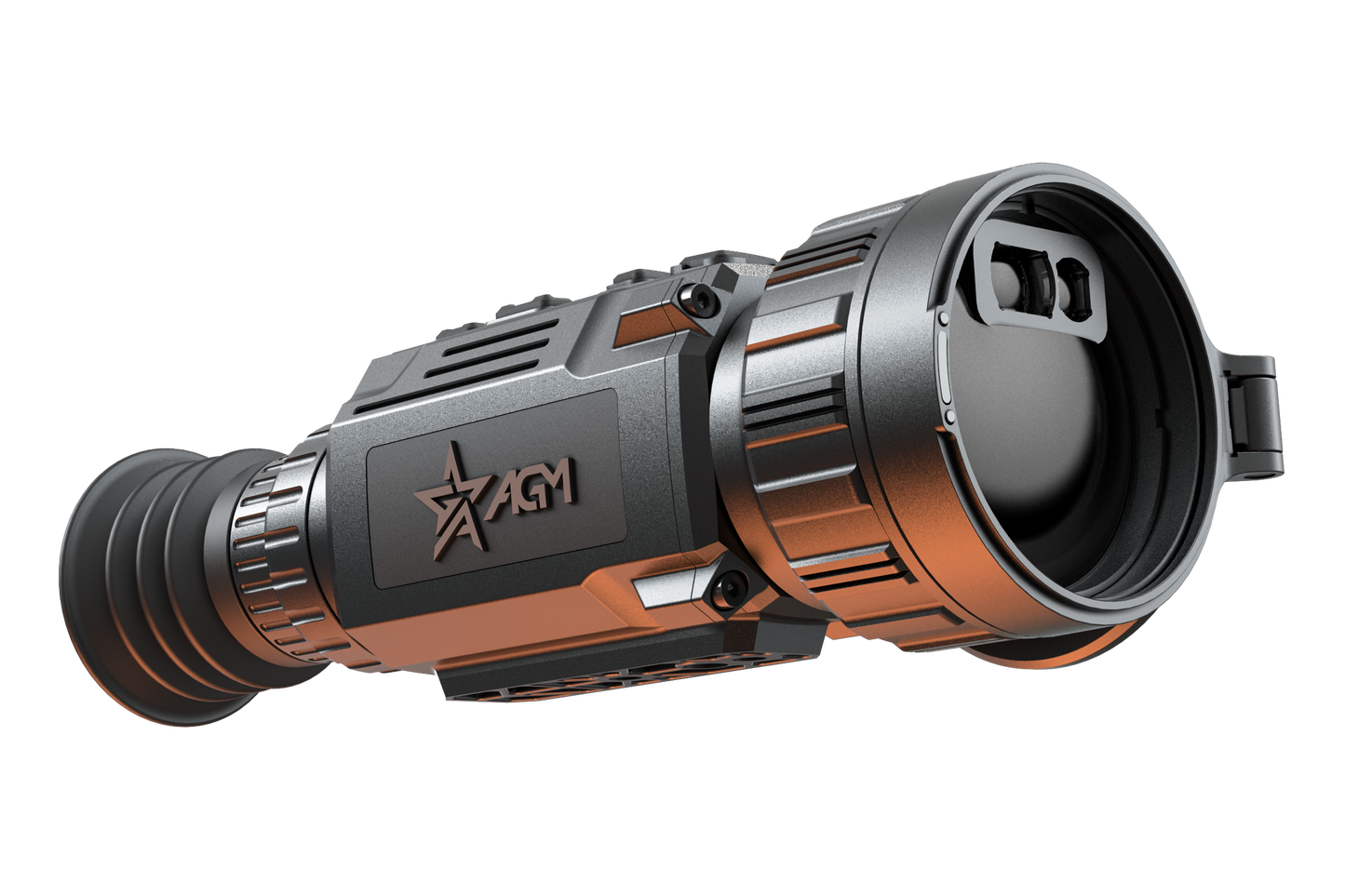

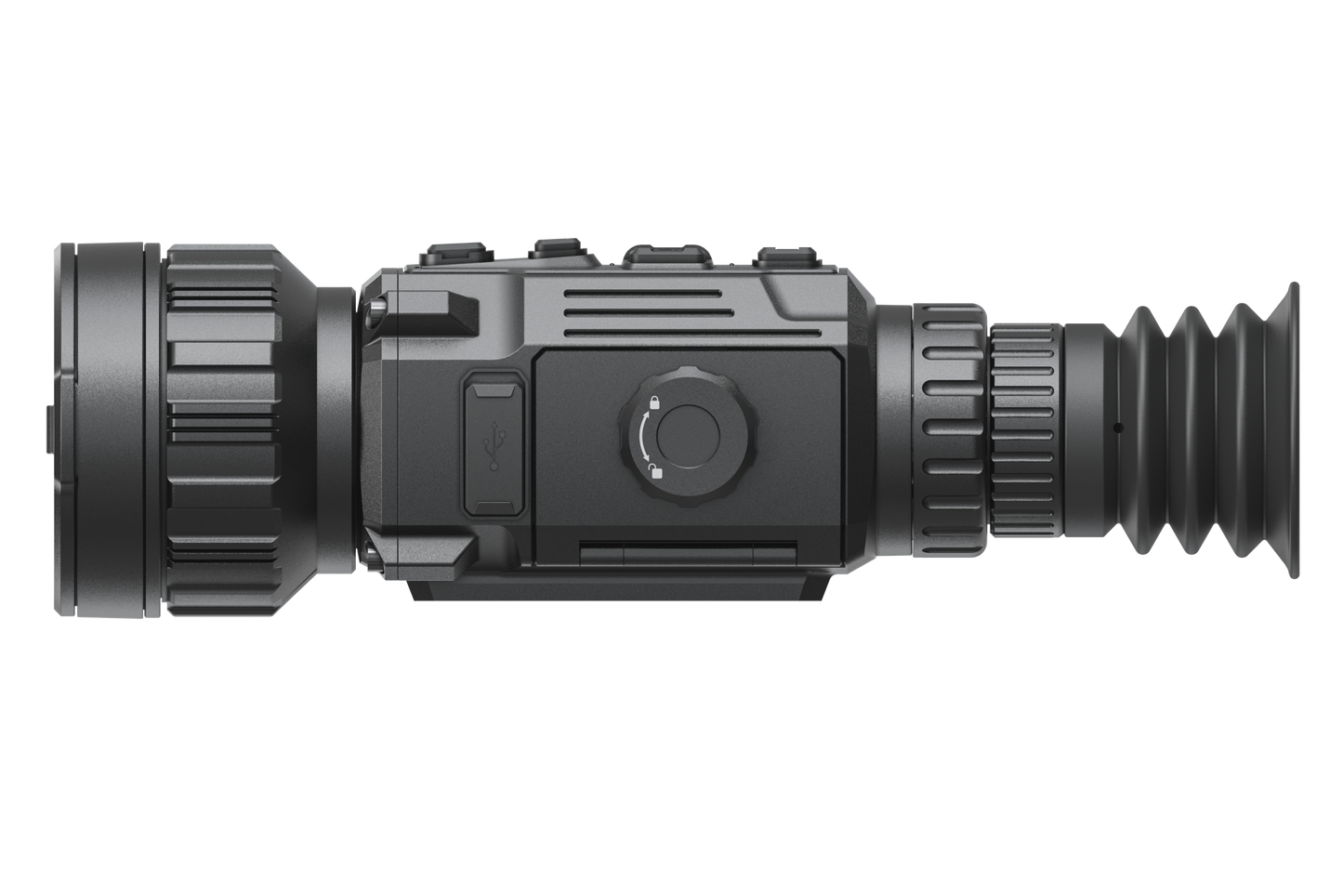

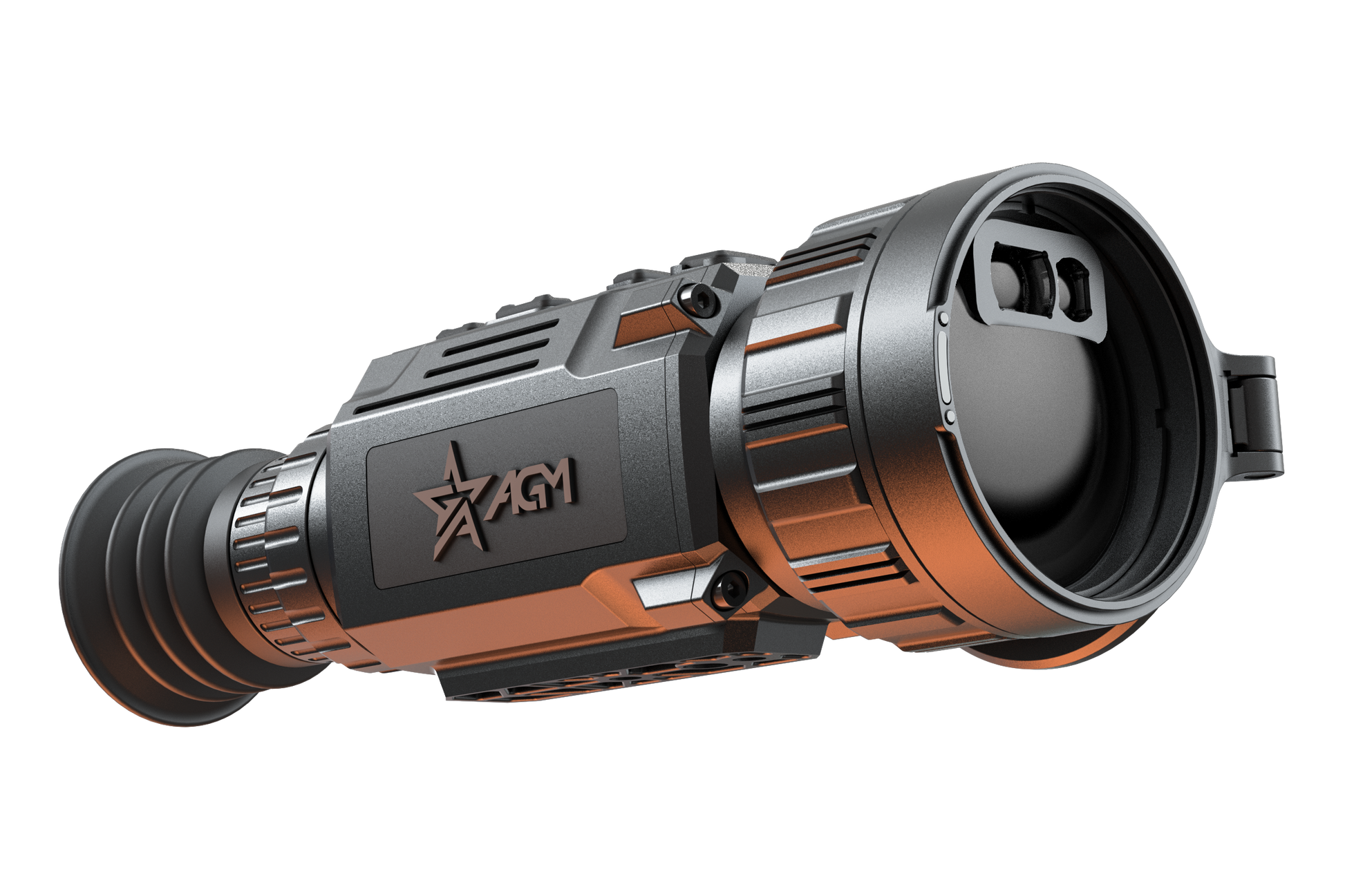

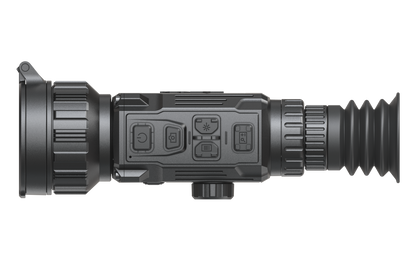

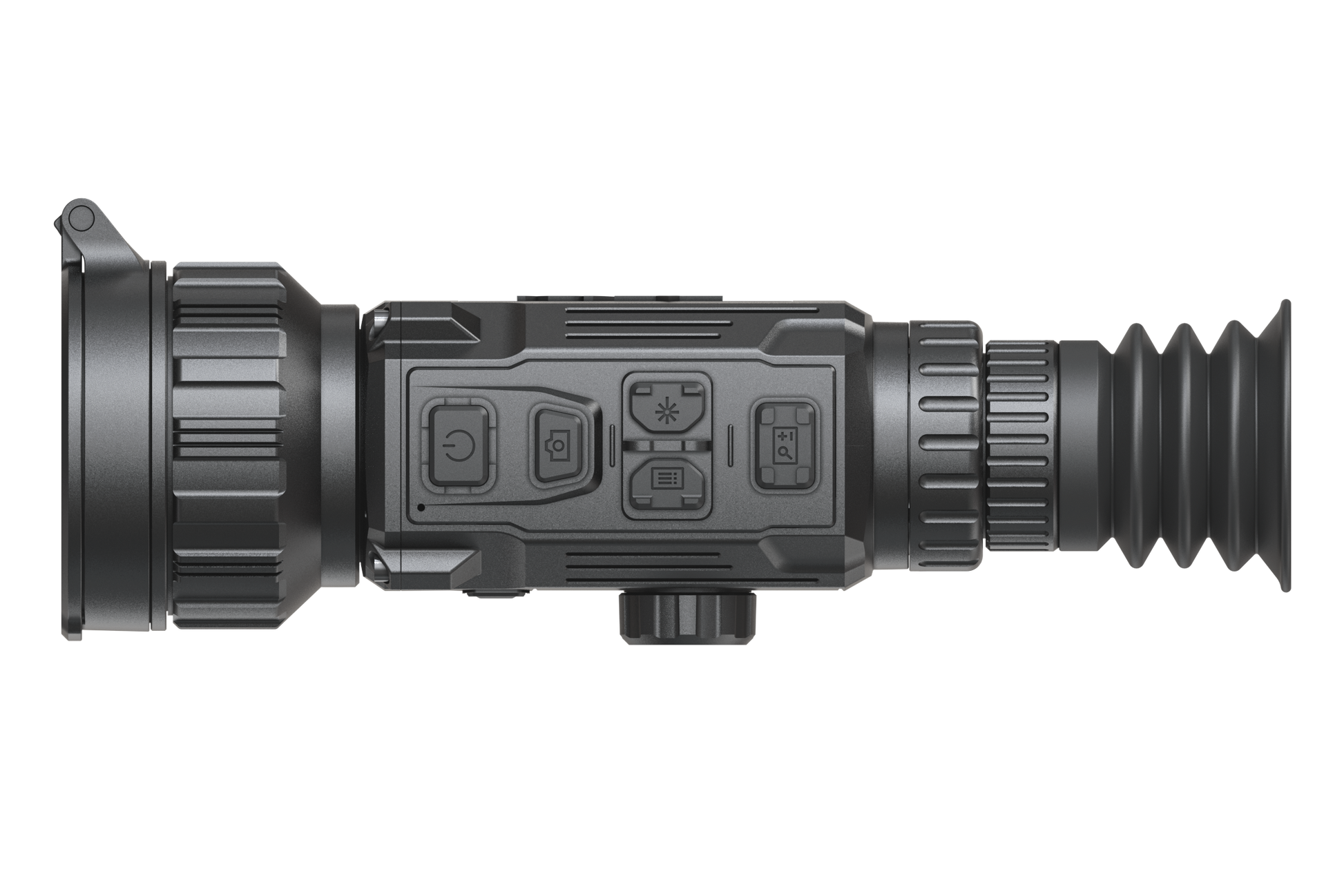

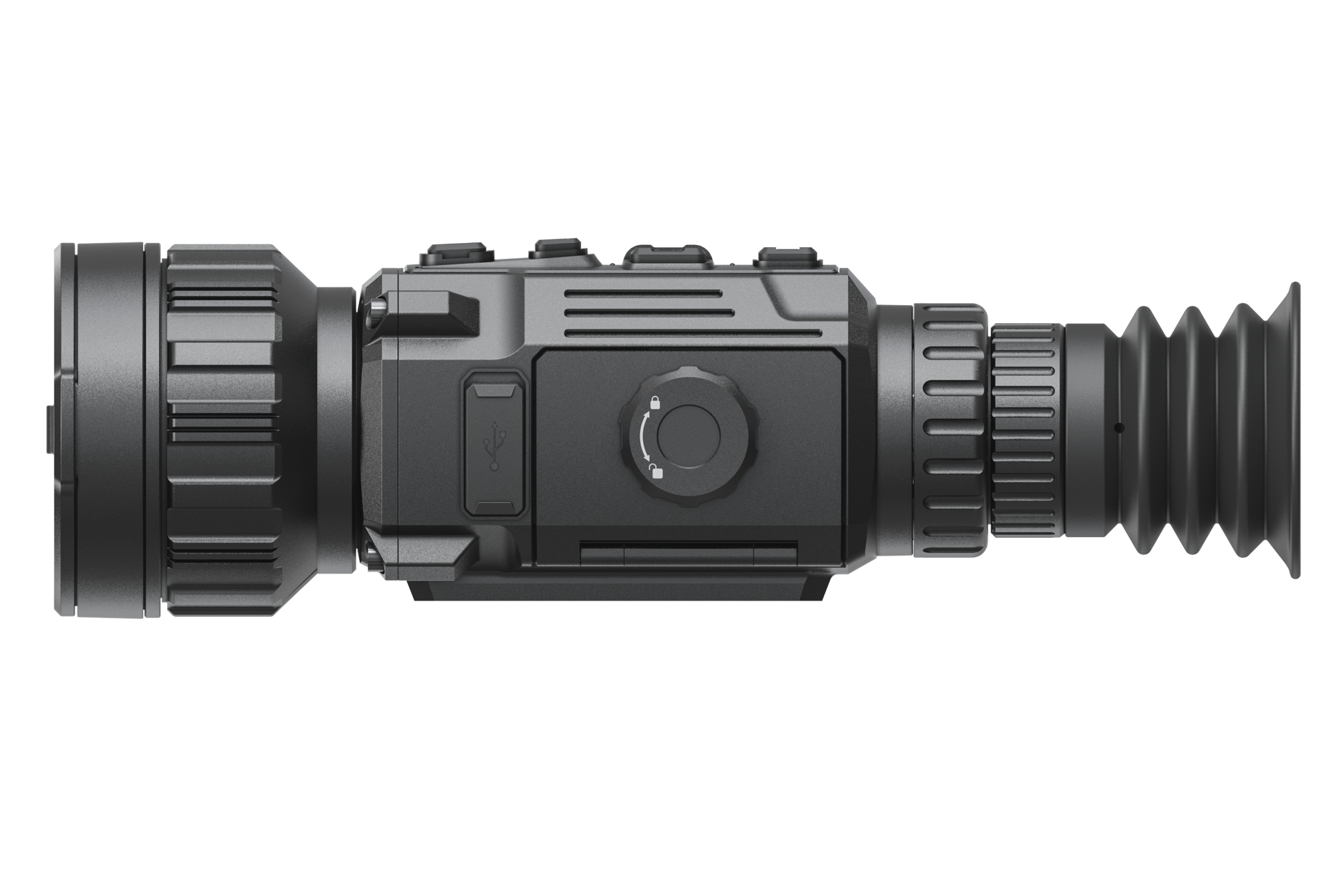

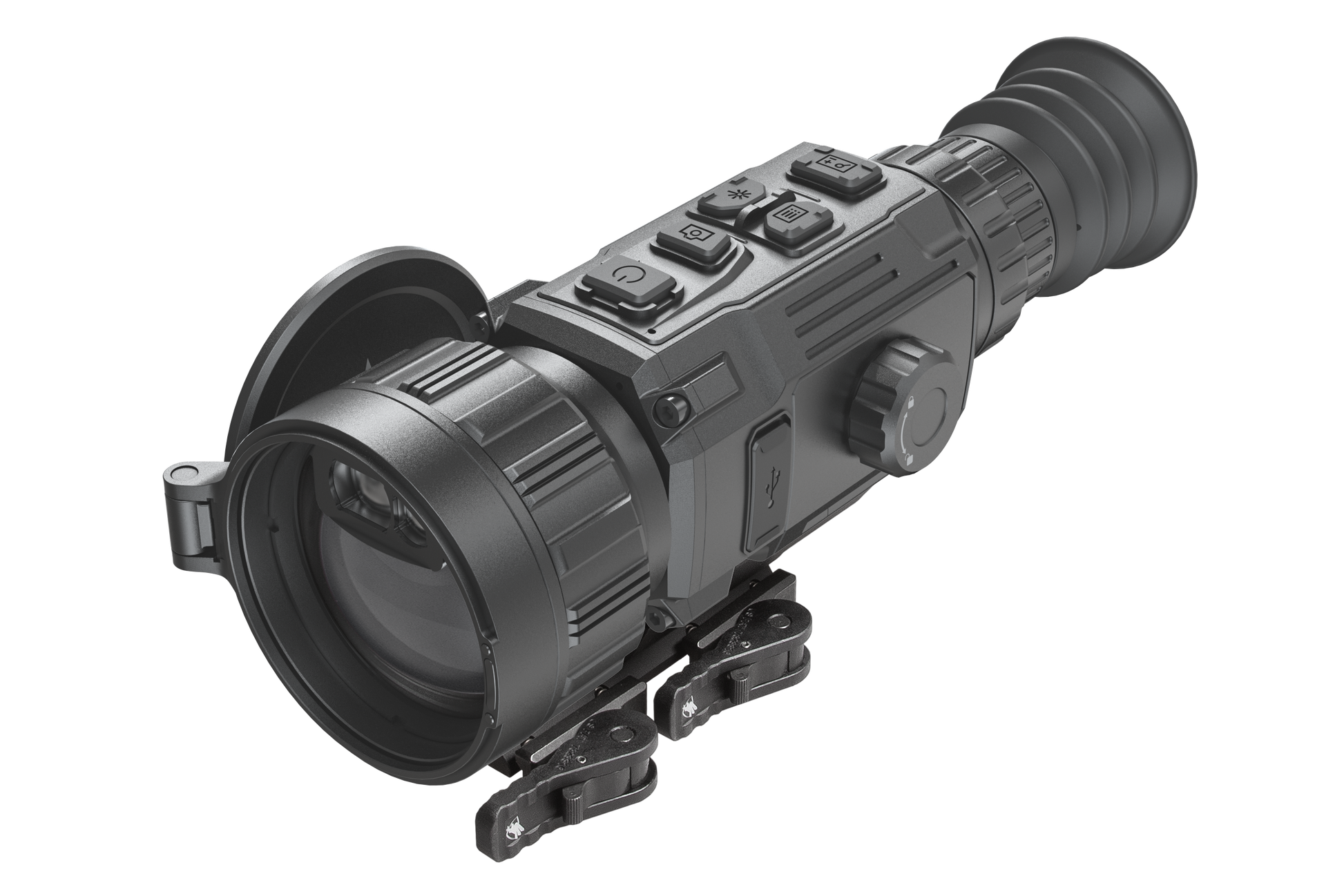

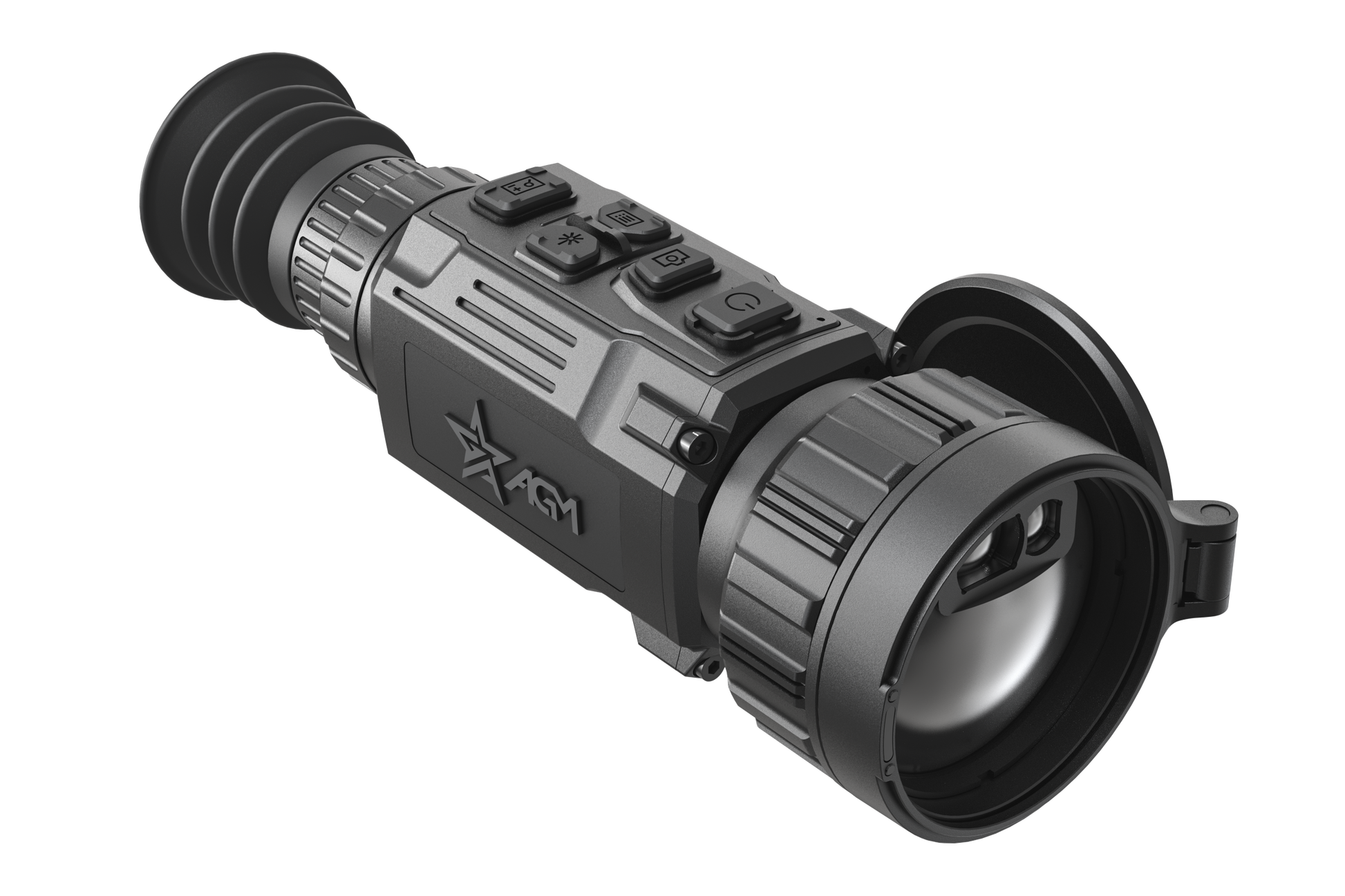

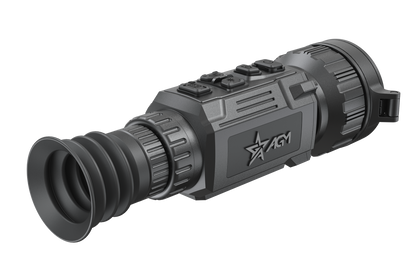

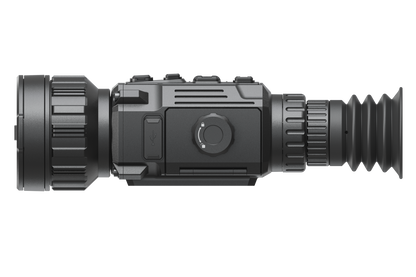

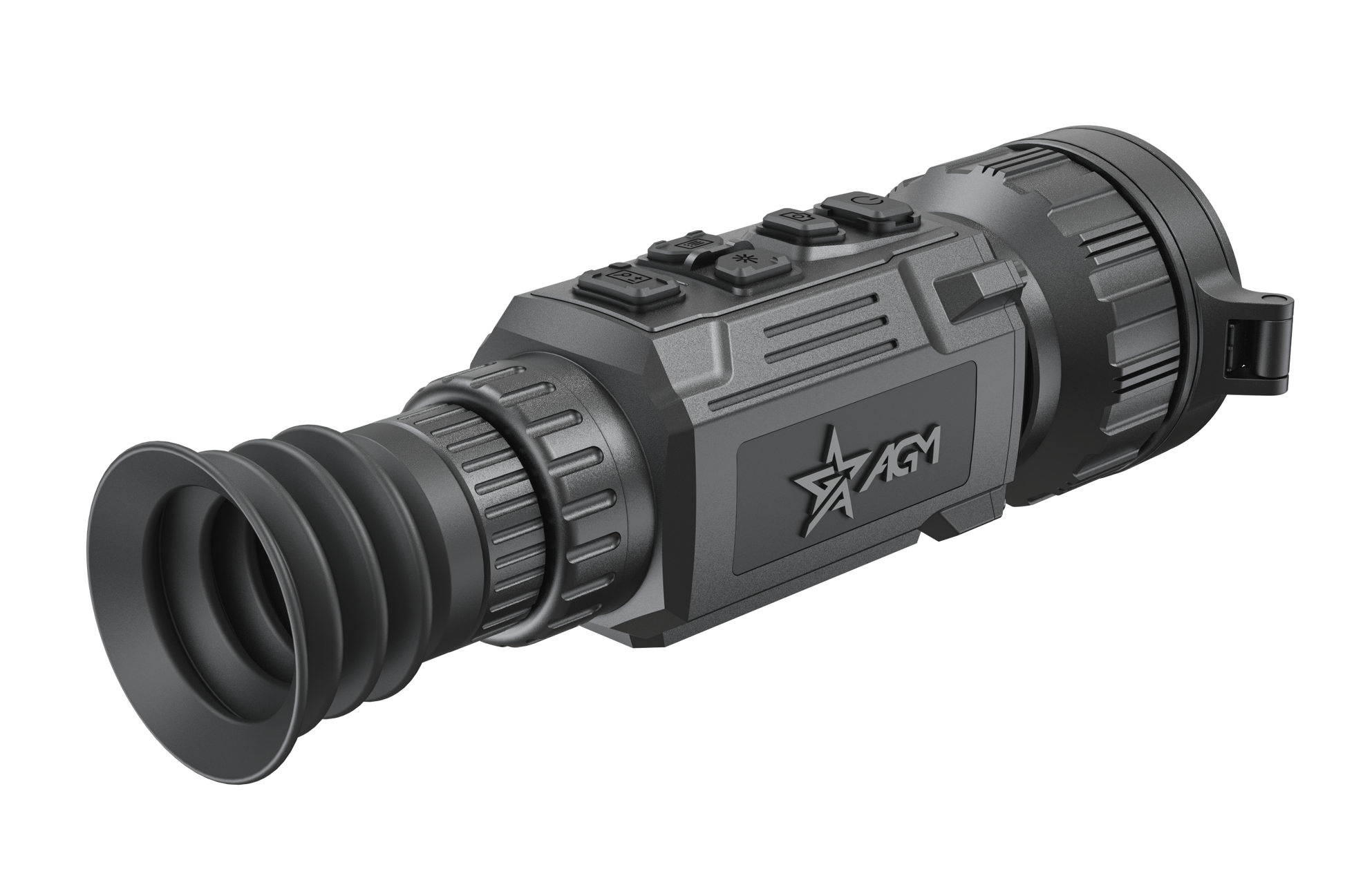

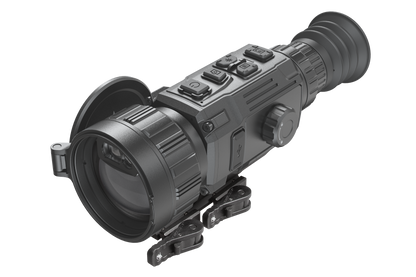

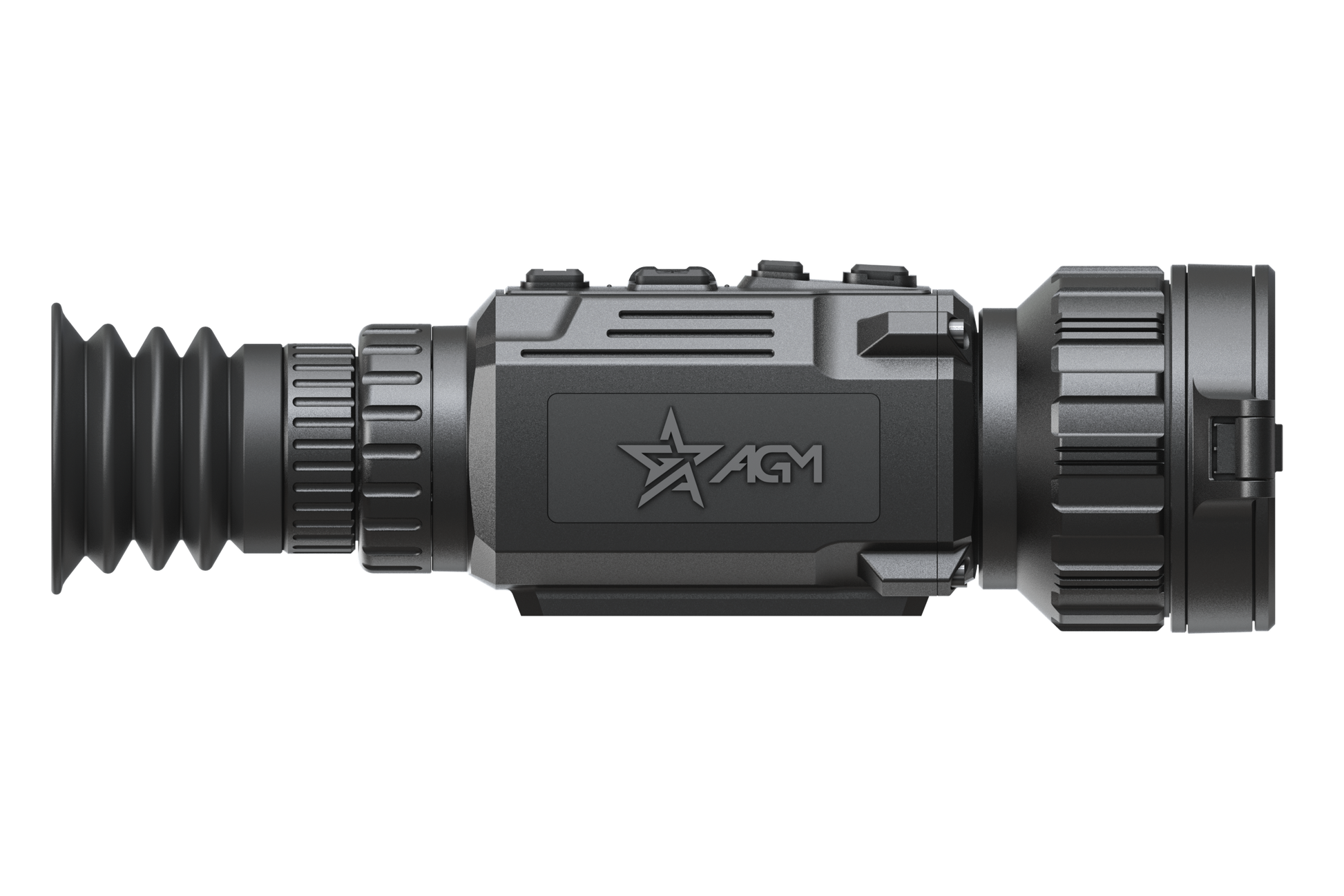

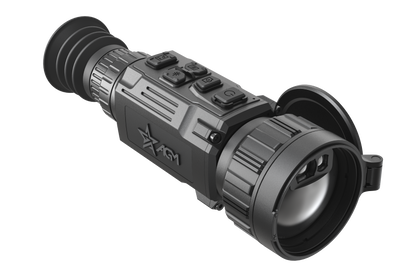

AGM Rattler V3 LRF 50-640

■ Superior sub-15 milikelvin thermal sensitivity
■ 640×512 resolution with 12-micron sensor
■ Built-in 1,000m laser rangefinder in the lens
■ Integrated ballistic calculator
■ Large OLED display with 1920x1080 resolution
■ Shutterless technology
■ Various reticle types and colors
■ 3.5x to 28x magnification
■ On-board video/audio recording and image capture
■ Built-in EMMC storage (64 GB)
■ Shot Activated Recording (SAR)
■ Wi-Fi data transmission
■ Standby mode
■ Over 5.5 hours battery life
■ External power supply compatibility
■ Waterproof & shockproof
■ 5-year warranty

Although it seems like just yesterday the celebrated AGM Rattler
thermal riflescope family got upgraded with the introduction of the
RattlerV2’s, the NEW RattlerV3 LRF testifies to the fact that evolution
never stops. The RattlerV3 LRF 50-640 brings the once inconceivable
new in-lens LRF technology to the compact Rattler series as well. Not
only that, but the RattlerV3 LRF 50-640 also pairs a new 1920 high
resolution display with an industry-leading sub-15mK thermal sensor,
which combines to produce the best 640 resolution thermal image that
we have ever produced. These technical parameters work together to
produce a detection range 1.6 MILES. Its also the first Rattler ever to
come with a shutterless NUC and an adjustable display which users
can change from rectangular to semi-circular. It also works to raise the
base magnification of the RattlerV2 50-640 from 2.5X to 3.5X, making
it an optimal option for predator hunters in wide-open terrain, which
entices longer range engagements. Flip on the new image boost 2.0
within the menu and users will be happy to concede that the AGM
brand, which started five years ago as a new and exciting entry-level
competitor, has quickly evolved into one of the most advanced thermal
image producers on the planet.

SPECIFICATIONS

Specifications are subject to change without notice.
Images are for illustration purposes only.

Detector 12μm Uncooled Focal Plane Arrays
Resolution 640×512
Refresh Rate 50 fps
NETD ≤15 mK
Focal Length 50 mm
Detection Range (6’ object) 2,600 m
Min. Focusing Distance 15 m
Aperture F 1.0
Magnification 3.5× - 28×
Digital Zoom 1×, 2×, 4×, 8×
Field of View (H × V) 8.7° × 5.3° (15.2 m × 9.19 m@100 m)
Display 1920x1080, 0.49 inch, OLED
Palettes Black Hot, White Hot, Red Hot, Fusion, Red Monochrome, Green Monochrome
FFC (Flat Field Correction) Mode Semi-Auto, Manual
Exit Pupil 6 mm
Eye Relief 45 mm
Diopter -4 D to 3 D
Tone Adjustment Cold, Warm
Image Boost 2.0 Yes
Zoom Pro Yes
Shutterless Yes
Record Video On-board video recording, 1920×1080
Capture Snapshot Yes, 1920×1080
Standby Mode Yes
Storage Built-in EMMC (64 GB)
Picture-in Picture (PIP) Yes
Defective Pixel Correction (DPC) Yes
WiFi Hotspot Yes
Hot Track Yes
Reticles 10
Zeroing Profiles 5
Freeze Zeroing Yes
Distance Measurement Built-in Laser Rangefinder
Ballistic Calculation Yes
Audio Recording Yes
Recoil-activation Recording Yes
Local Album Yes
Max. Recoil 1000g/0.4ms
Battery Type Replacable and Rechargeable Li-ion Battery
Battery Operating Time ≥5.5 h (25°C, with hotspot off)
Type-C Power Supply 5V DC/2A Supports external power supply
Work Temperature -30°C to 55°C (-22°F to 131°F)
Protection Level IP67
Dimensions 232 × 83 × 70 mm ( 9.1 × 3.3 × 2.8 in )
Weight (without Battery) 585 g (1.3 lb)
Laser Safety Class Class1
Wavelength 905 nm
Measuring Range 10 m to 1000 m
