AGM ObservIR LRF 35-384 ( Pre Order )

AGM ObservIR LRF 35-384 ( Pre Order )

Regular price $2,795.00 USD
Regular price $3,095.00 USD Sale price $2,795.00 USD
Sale Sold out

Description And features

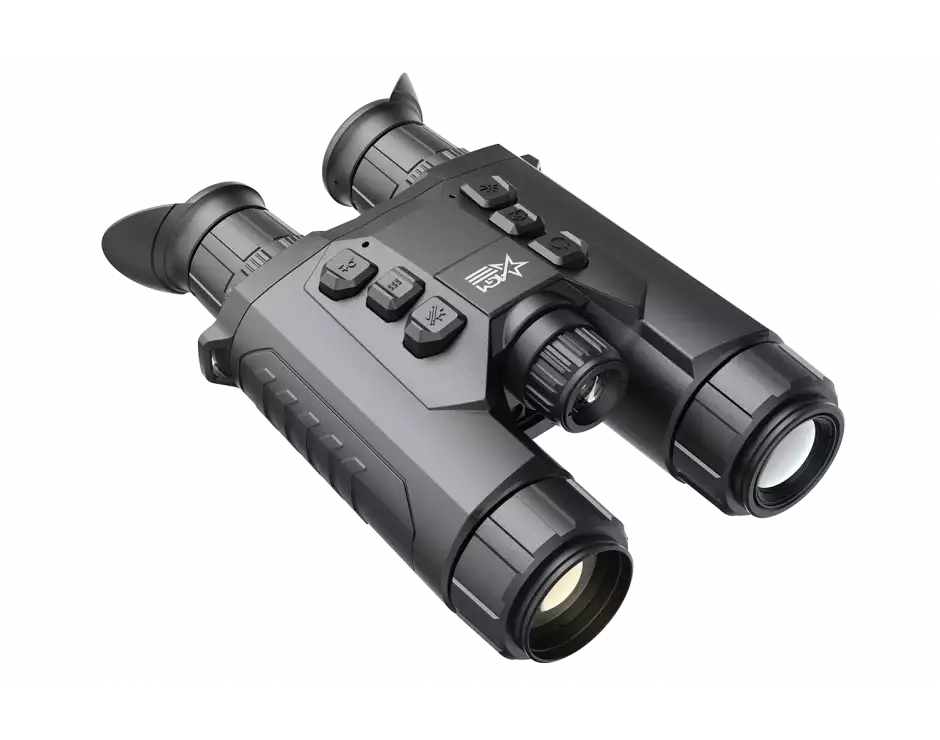

The AGM ObservIR LRF Thermal & Digital Day/Night Vision binocular is some of the most technologically advanced and feature-packed optics in the world. The primary engine behind these binocular lies within the main thermal viewing channel, with its high-sensitivity 12 micron detector. Unlike other thermal binoculars on the market, the ObservIR LRF also come outfitted with a digital day/night channel as well, which is great for aiding in recognition of targets detected by the thermal channel. The built-in 1,000m laser rangefinder simply takes the ObservIR LRF to another level, and this is without even mentioning its 64GB of internal memory and Wi-Fi compatibility.
The ObservIR LRF monoculars also come packed with numerous software improvements, and many features that have become commonplace within the AGM thermal product assortment: high-sensitivity thermal detector, 35 mm objective lens with a 1.0 aperture, 3840x2160 ultra-low light CMOS sensor, various viewing modes, multiple color palettes, picture-in-picture mode, built-in laser rangefinder, GPS module, long-range IR illuminator, up to 8 hours of battery life on removable, rechargeable 18650 batteries,
USB Type-C port for external power capabilities, IP67 waterproof rating. The package includes four 18650 batteries, wrist strap and charger.\

Warning: California's Proposition 65


  • Dual-spectrum thermal and digital day/night system
  • 12μm high-sensitivity thermal sensor
  • 384x288 thermal resolution
  • 4x – 20x thermal magnification
  • Digital image processing technology
  • Ultra-low illumination optical channel
  • 3840×2160 optical resolution
  • Built-in IR illuminator
  • Eye-safe 1,000 m laser rangefinder
  • 1920×1080 resolution, 0.49-inch OLED display
  • Digital Magnetic Compass
  • Built-in GPS module
  • Video/audio recording and snapshot capture
  • Built-in 64 GB EMMC storage
  • Wi-Fi hotspot
  • Standby mode
  • 8-hour continuous operation on a single charge
  • Auto screen-off function to saving energy
  • External power supply capability
  • Rugged housing with rubber overmolding
  • Waterproof and dustproof

Specifications


Interpupillary Distance
60 mm to 74 mm
Safety Class for Laser
Class 1
Palettes
Black Hot, White Hot, Red Hot, Fusion
Dimensions
221×142×71 mm (8.7×5.6×2.8 in)
Infrared Illuminator
Built-in 850nm Smart IR.Power and beam angle adjustment.
Distance Measurement
Laser Rangefinder: up to 1,000 m, ±1 m accuracy
Scene Mode
Jungle, Recognition
Video Recording
Yes
Audio Recording
Yes
Magnification
Thermal Channel - 4.0x – 20x / Optical Channel - 5.5x – 22x
Detector type
Thermal Detector - 12μm VOx Uncooled Focal Plane Array / Digital Sensor - 3840×2160, 1/88” Progressive Scan CMOS
FFC (Flat Field Correction)
Auto, Manual, External Correction
Highest Temperature Spot Tracking
Yes
Standby Mode
Yes
Refresh rate
50 Hz
Resolution
384 × 288
Laser Wavelength
905 nm
Detection Range (6' object)
1,800 m
Snapshot
Yes
Lens system
Thermal Channel - 35 mm; F1.0 / Optical Channel - 60 mm, F2.2
NETD
Less than 15 mK (25°C, F#=1.0)
Field of view (H × X)
Thermal Channel - 7.5° × 5.7° / Optical Channel - 6.9° × 4.1°
Diopter adjustment range
-5 to +3
Monitor
1920×1080, 0.49 inch, OLED, 50 FPS
Display
Day, Night, Auto
Storage
64 GB EMMC
Battery Type
Two 18650 rechargeable battery (removable)
Wi-Fi
Yes
Battery Life (Operating)
Up to 8 hours continuous running (@25°C, WiFi, IR and LRF off)
Power supply
5 VDC/2 A, USB Type-C interface. Supports external power supply.
Operating Temperature Range
-20°C to 55°C (-4°F to 131°F)
Weight
0.91 kg (2.01 Ib)
Protection Level
IP67 (Waterproof)
